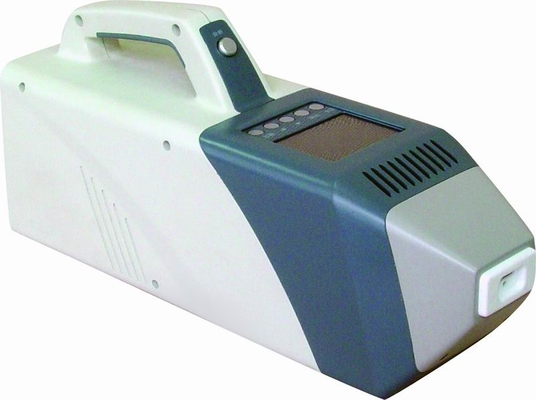

220V IMS Technology Portable Explosive USB Detector with 3.5 inch TFT LCD Screen

Large Image : 220V IMS Technology Portable Explosive USB Detector with 3.5 inch TFT LCD Screen Get Best Price

Product Details:

Certification:	By China's Ministry of public security
Model Number:	AY05-02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	60cm * 44cm * 29cmG.W17 kg
Delivery Time:	10 work days
Payment Terms:	100% T/T in advance
Supply Ability:	100 per month

Contact Now

Detailed Product Description

Highlight:

Explosive Detectors

Bomb Detector

220V IMS Technology Portable Explosive USB Detector with 3.5 inch TFT LCD Screen

Description:

The AY05-02 is one of the most advanced and cost-effective portable explosive detector available in the world, which adopt spseudo random sequence ion door-opening technology and Hardmard algorithm. It improves the signal noise ratio and anti-jamming capacity greatly and reduce false alarm rate efficiently. The devices are widely used by the governments worldwide to detect the presence of explosives and analyze which kind explosive it is.

Features:

IMS and pseudo-random-sequence ion gate technology
Show the name of explosives
Colorful LCD screen
Store 2000 log records
Upgradeable Sample Database
External USB and Network Port
Sample Collection: Vapor or Trace
Small size and light Weight
Reversed system menu window
Additional sample can be programmed into the system

Specifications:

Technology	IMS and pseudo-random-sequence ion gate technology	Detecting Capability	Black Powders, Ammonium Nitrate (AN), TNT, AN-TNT, RDX, PETN, HMX, Tetryl, C4, TATP, SEMTEX etc.
Sensitivity	10^-10 g	Sample Collection	Vapor and Trace Particle
False Alarm Rate	1%	Warm-up Time	Less than 15 minutes
Analysis Time	4～10s	Calibration Time	4～10s
Alarm Mode	Audio or Visual Alarm	Dimension	435×133×210 (mm)
Weight	4.6 kg(including 1.4 kg battery)	Power Supply	AC 220V, or lithium battery
Temperature	-20℃to 40℃	Relative Humidity	< 99%
Display	3.5 inches TFT color screen	Connector	Net-port or USB-port
