PC Digital Ultrasonic Flaw Detector Automated Display With Big Memory

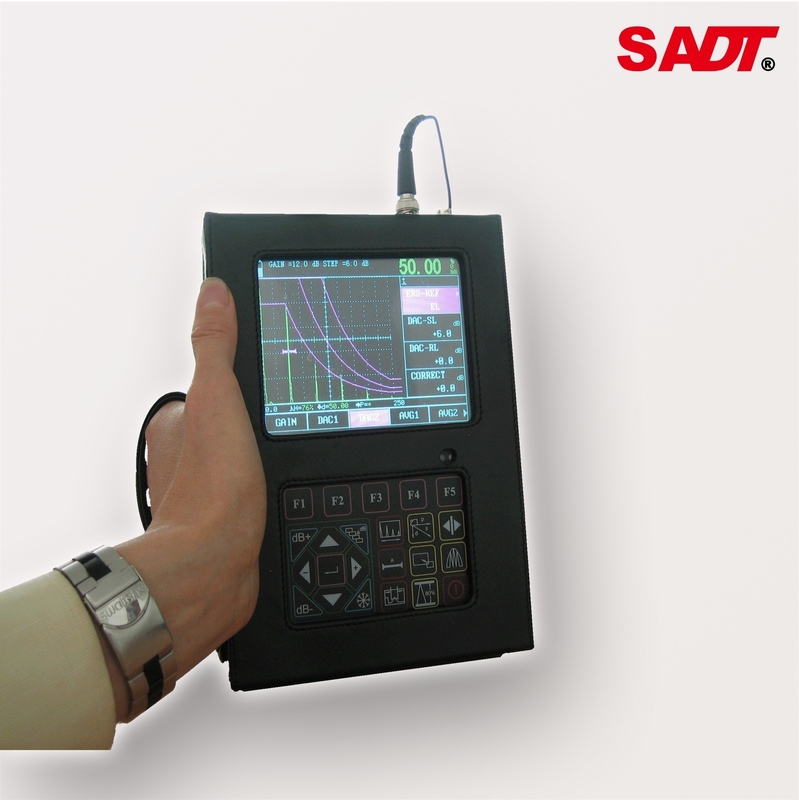

PC Digital Ultrasonic Flaw Detector SUD20 Automated Display With Big Memory

SUD series ultrasonic flaw detectors are portable, microprocessor-based instruments that are suitable for both shop and field use. They are integrated with international advanced digital integration and new EL display technology, are smart Digital Ultrasonic Flaw Detector propelled by SADT. SUD series flaw detectors have almost all functions to meet requirements of professional application for nondestructive testing.

SUD20 and SUD50 are more portable models.

Key Features

 Automated gain and gain scan;
Peak Hold and Peak Memory;
 DAC, AVG, B scan, AWS
TCG curve
 High-speed capture and very low noise
 Automated make video of test process and play.
Use USB flash disk, the length of video is unlimited.
 High contrast viewing of the waveform from
bright, direct sunlight to complete darkness and
easy to read from all angles
 Automated display precise flaw location(Depth
d, level p, distance s, amplitude, sz dB, Ø);
 Automated switch three staff gauge (Depth d,
level p, distance s);
Automated calibration of transducer Zero-point,
Angles, Front edge and material Velocity ;
 Convenient to make and use DAC/TCG and
AVG to evaluate the echo, the curve can be
modified and compensated
6dB DAC functions;
100 independence setup, any criterion can be
input freely, we can work in the scene without
test block;
 Big memory of 1000 A graph
 Big memory of 300 A graph and 30000 thickness
values

 Li battery, continue working time up to 10
hours;
 The embedded software can be online updated;
Display freeze;

 Automated echo degree;
 Angles and K-value;
 Lock and unlock function of system parameters;
 Electronic clock calendar ;
 Two gates setting and alarm indication;
 Gate and DAC alarm;
Automated measurement of nodularity and
vermicularity
 RS232/USB port, Communication with PC is
easy
 Powerful pc software and reports can be export to
excel
 Pulse parameteres can be adjusted
 Dormancy and screen savers
Solid metal housing (IP65)
