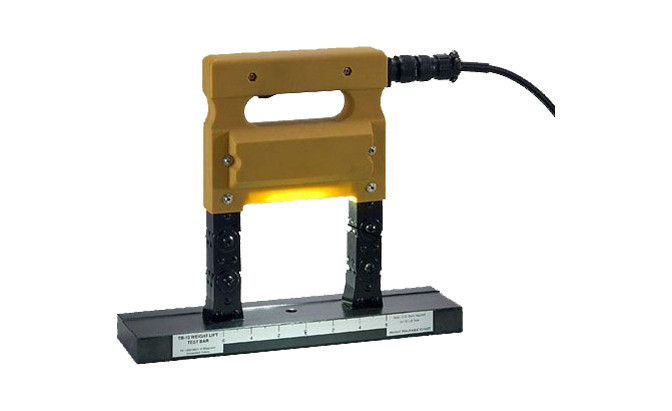

Portable Magnatic Particle Flaw Detector NDT Instrument 50/60HZ 220V±10%
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty Period: | 12months | Working Current: | AC 2A |
|---|---|---|---|
| Test Object: | Metal | Power Supply: | AC 220V±10%, 50-60HZ |
| High Light: | ndt instruments,non destructive testing instruments |
||
Magnatic particle flaw detector, Non destructive testing equipment, Magnetic Defect Detector
Description
The magnetic particle flaw detector is a portable NDT instrument, it features compact size, light, powerful, easy in operation. It can perform flaw detection of plane welding line, angle welding line, steep pipe, pressure container, pipe, shaft and other complicated structure parts. It’s kind of common metal NDT instrument.
Main technical specifications
1.Power supply: 220V±10%, 50/60HZ
2. Working current: AC 2A
3. Probe polar distance: 20-160mm
4. Lifting power: 8Kg( plane)
5. Instrument weight: 2Kg
6. Sensitivity: “A” type test block clearly display
