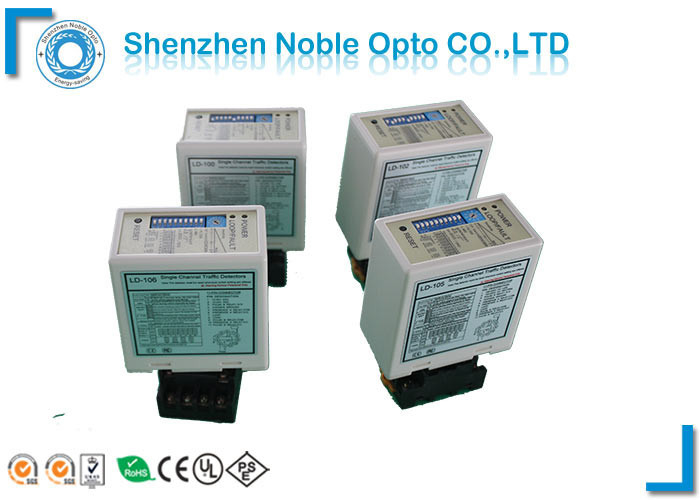

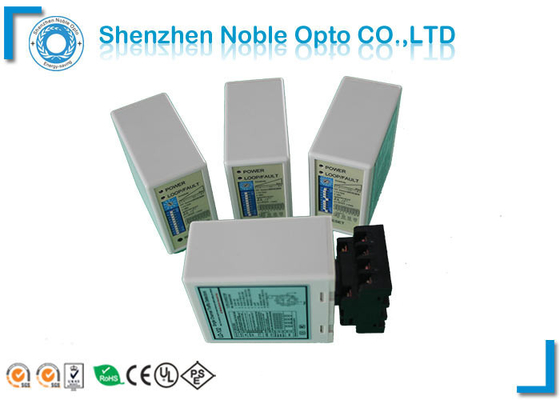

ETC Reader Single Channel Loop Detector -40℃ to +70℃ 20KHz - 80KHz

ETC Reader Single Channel Loop Detector -40℃ to +70℃ 20KHz - 80KHz

Description:

The digital technology of the loop detector enables the equipment to sense a change in the inductance of the

loop as soon as it detects the metal object in its path.

The inductive loop which detects the object is made of insulated electrical wire (32/020; 32 Strand, 2mm

diameter) and is arranged either as a square or rectangle shape.

Features

Compact Size: the compact and well engineered housing  Combines all of the industry requirements regarding

Features and functionality and allows this detector to be  Incorporated into any or existing traffic detection system.

Diagnostic Capabilities: Comprehensive diagnostics  Capabilities allow for accurate diagnosis of loop and

Installation problems.

Selectable Presence Time: The output of the presence Relay can be selected to limit a detect output to a fixed

time(time>30 minutes)while a vehicle remains on the loop Loop Frequency Indication: Interference between

adjacent loop/detectors can be determined by an integral indication, and eliminated by changing the frequency

setting.

Two separate output relays:

Presence Relay A is presence output. Can be extended for 0,2,5,8,10,15,20 or 30 seconds, programmable with external 10 way DIP switches.

Pulse Relay B, programmable with external 10 way DIP switches, provides presence, pulse on entry, pulse on exit, or failed output.

Specifications:

Applications:

Applications

Traffic Control Application

Vehicle Counting

Toll Systems

Autogate control

Traffic Analysis

ETC Control



Ordering Information:

LD-100  single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)

LD-102  single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)

LD-105  single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)

LD-106  single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)
