Kwh Single-step Manually Power Monitoring Equipment Calibration For Harmonics

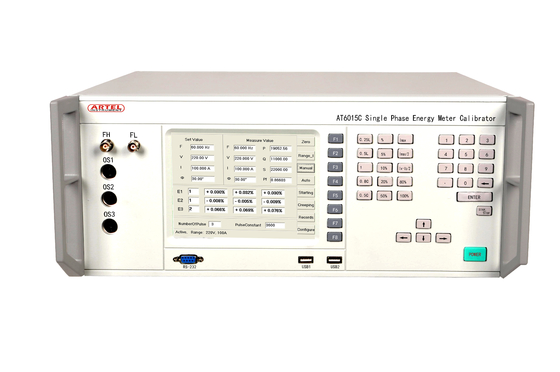

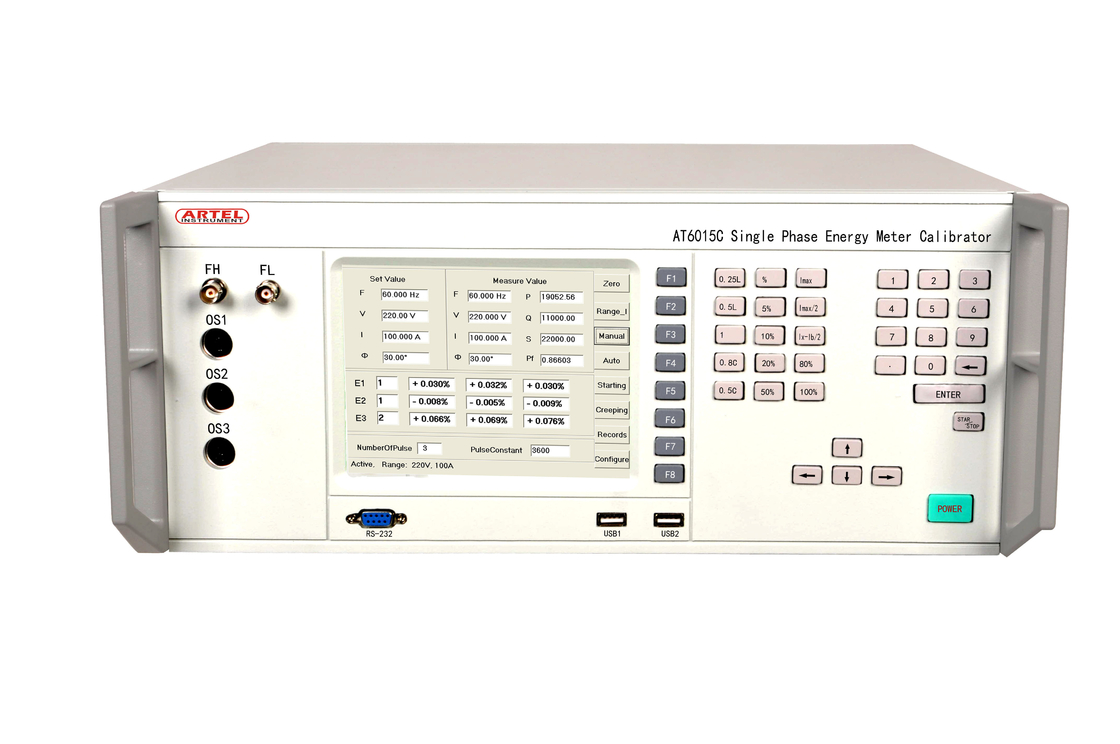

Large Image : Kwh Single-step Manually Power Monitoring Equipment Calibration For Harmonics Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Artel
Model Number:	AT6015C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	1 month
Payment Terms:	TT

Contact Now

Detailed Product Description

Product Name:	Power Meter Calibrator	Usage:	Harmonics Meter
Feature:	Single-step Manually	Type:	Single Phase / 3 Phase
Screen:	7" Color Touch Screen	Accuracy:	U, I, P, Kwh: ±0.05%
High Light:	power meter test equipment , power meter measurement , electrical test instruments

Kwh Single-step Manually Power Monitoring Equipment Calibration For Harmonics

Main Features:

Accuracy : U, I, P, kwh: ±0.05%; Q, kvarh : ±0.1%;
U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 100V-250V;
Export 2nd-21st harmonics;
Automatically or single-step manually test basic error, shunt running, start, standard deviation of single phase energy meter;
Equipped with RS232 & Ethernet interface, AT6015C can be operated either stand-alone, or controlled by PC;
Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
Remotely updating online, easily achieve software updating;
Self-protection, alarming and displaying overload location for Source-output overload, Voltage short-circuit, Current open-circuit;
Self-diagnosis for amplifier failure and internal module communication failure;
Test 3 energy meters with the same model type at one time;
Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);

Product Profile:

AT6015C can calibrate single phase active & reactive energy meters

Technical Specification

	Range	Capacity	Adjustment Degree	Adjustment Range	Stability	Distortion (linear load)	Measurement accuracy
AC Voltage	100~250V	30VAmax	0.01%RG	0~120%RG	0.01%RG 3min CL0.05 0.02%RG 3min CL0.1	0.2% CL0.05 0.5% CL0.1	±0.05%RG CL0.05 ±0.1%RG CL0.1
AC Current	0.05A~100A	100VAmax @100A	0.01%RG	0~120%RG	0.01%RG 3min CL0.05 0.02%RG 3min CL0.1	0.2% CL0.05 0.5% CL0.1	±0.05%RG CL0.05 ±0.1%RG CL0.1
Phase	0.00°~359.99°		0.01°	0.00°-359.99°	0.01°		±0.05°
Frequency	40Hz ~70Hz		0.002Hz	40Hz -70Hz	0.002Hz		±0.003Hz
Power/Energy							±0.05%RG CL0.05 ±0.1%RG CL0.1 pf≥0.5
Output Harmonics	2nd to 21st		0.01%RG	≤40%

Other Parameters

Aux. Power Supply	AC 220V±15%
Working Environment	Environment Temperature 20℃-30℃, Humidity:RH ≤85%
Dimensions	440mm(L)× 445mm(W)× 180mm(H)
Weight	18KG
LCD Size	7 inch color touch screen
