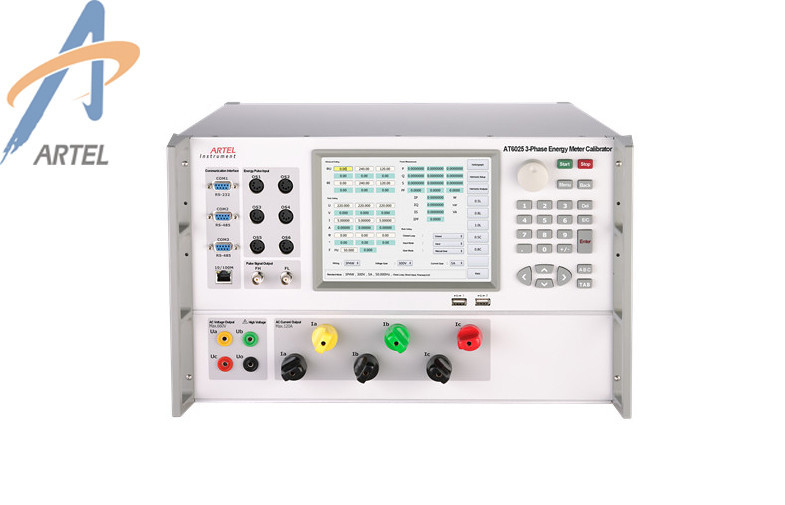

High Stability Industrial AC Current Power Meter Calibrator Output 50mA - 120A

High Stability Industrial AC Current Power Meter Calibrator Output 50mA - 120A

Main Features:

• With OCXO daily error of energy meter can be detected;
• 7" color touch screen, interface friendly, easy to operate;
• Equipped with RS232 & Ethernet interface, AT6025C can be operated either stand-alone, or controlled by PC;
• Accuracy :U, I, P, Kwh : ±0.05%; Q, Kvarh : ±0.1%;
• U, I, P stability : 0.01%RG/3min, AC Voltage and AC Current distortion : ≤0.2%;
• Current scope: Min. 0.05A, Max. 100A(Max output 120A); Voltage 57.7V-380V;
• Export 2nd-63rd harmonics, and measure & analyze the harmonics;
• Automatically or single-step manually test basic error, Creeping, start, standard deviation of single/three phase energy meter, besides, automatically testing can be self-defined by user;
• Automatic Calibration System can be customized according to customer's requirements;
• Exchange the testing settings and testing records thru U disk(or SD card);
• Remotely updating online, easily achieve software updating;
• Equipped with barcode gun interface, parameters of tested meters can be easily scanned in;
• Communicate with tested meters thru RS485, Ethernet, RS232;
• Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;
• Self-diagnosis for amplifier failure and internal module communication failure;
• Test 3 energy meters with the same model type at one time
• Test energy meters with the accuracy of Class 0.2 and below (Class 0.05 equipment);

Product Profile:

All kinds of active/reactive energy meters can be calibrated.

Technical Specification
