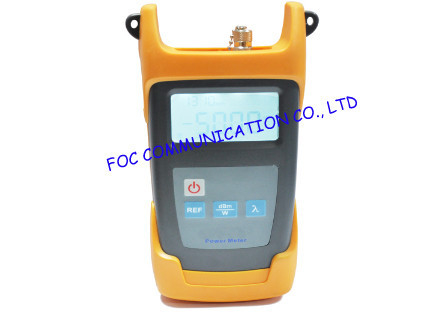

User self - calibration Handheld Fiber Optic Power Meter up to 80dB

Large Image : User self - calibration Handheld Fiber Optic Power Meter up to 80dB Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	FOCABLE
Certification:	RoHS Compliant, ISO Certificate
Model Number:	Fiber Optic Power Meter FO3211

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	1PCS/BOX
Payment Terms:	Western Union, T/T
Supply Ability:	5000PCS/MONTH

Contact Now

Detailed Product Description

Type:

Handheld Or Bench-top

Wavelength:

850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

Measurement Range:

-70～+26dBm

Connector:

SC, FC, LC

High Light:

fiber optical power meter

fiber optic test and measurement

Handheld Fiber Optic Power Meter FO3211 Small Size New Design For Fiber Networks

General information

FO3211 optical power meter is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power measurements as well as for relative loss measurements in optic fiber networks . Its photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, wide range of power measurement, high accuracy, user self-calibration function and reference power level storage.

Key Features

Wide dynamic measurement range (up to 80dB)

Reference power level storage(Ref Setting)

User self-calibration function

Comfortable LCD display and backlight LCD display supports

night operation.

Power measurements in dBm or mw and insertion loss in dB

10 minutes Auto-off function can be activated or deactivated.

AA alkaline batteries can last more than 140 hours, AC adaptor also available

Low battery indication

Specifications

Model	FO3211A	FO3211C
Wavelength(nm)	800~1700nm
Detector type	InGaAs
Detector Size	*ф 1.0mm*
Measurement Range(dBm)	-70～+10		-50～+26
Uncertainty (dB)	±0.25
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Display resolution(dB)	0.01
Optical Connector type	FC,SC,ST interchangeable
Alkaline battery	3*AA,1.5V, AC Adaptor(8.4V)
Power Supply Adaptor(V)	8.4
Battery Operating time (h)	140 h with 1.5V Battery(3pcs)
Operation Temperature(℃)	-10～+60
Storage Temperature(℃)	-25～+70
Relative Humidity	0 to 95% (non-condensing)
Outline size(mm)/weight	19210250(300g)
