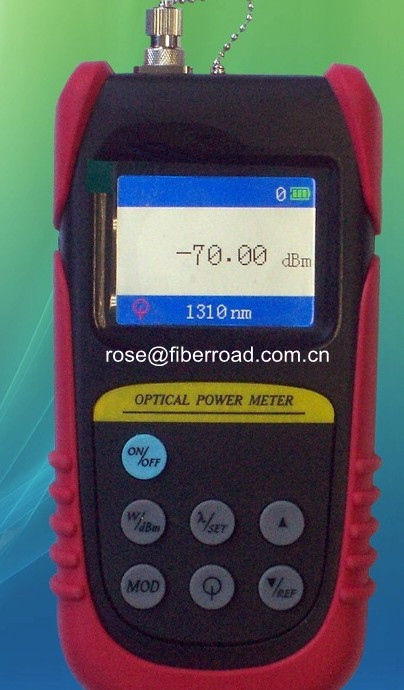

Battery Powered Power Meter Fiber Optic Test Equipment Self-calibration

Large Image : Battery Powered Power Meter Fiber Optic Test Equipment Self-calibration Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Fiberroad
Certification:	CE
Model Number:	FR-HPMX

Payment & Shipping Terms:

Minimum Order Quantity:	1Pcs
Price:	Please contact with rose@fiberroad.com.cn
Packaging Details:	Carton Box
Delivery Time:	1 Weeks
Payment Terms:	100% T/T advance
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Product Name:	Power Meter	Connector::	FC ST SC
Operation Wavelength::	850nm,980nm,1300nm,1310nm,1490nm,1550nm,1625nm	Application:	Fiber-optic Network Testing
Resolution::	0.01 DBm	Power Supply:	9V Alkaline Battery
High Light:	fiber optic testing equipment , optical test equipment

Battery Powered Power Meter Fiber Optic Test Equipment Self-calibration

【Features】

Self-calibration function.
Optional RS232 remote console interface.
High sensitivity and large dynamic range
0.01 dBm precision
Automatically converted Range
Small size, light weight, high reliability
Battery-powered, convenient field work

【Applications】

Fiber optic production and research
Testing and maintenance of fiber-optic network
Teaching and testing in optical communication

【Specifications】

Type	FR-HPMA	FR-HPMB
Detector	InGaAs	Fitered InGaAs
Wavelength Range(nm)	850,1300,1310,1490,1550,1625	850,1300,1310,1490,1550,1625
Power Measurement range(dBm)	+6 ～ -70	+26 ～ -50
Uncertainty	+5%
Resolution Ratio	0.01dBm
Power Supply	9V alkaline battery
Optical Connector	FC-type adapter (SC,ST is optional)
Operating Temperature	-10℃ to 60℃
Storage Temperature	-20℃ to 70℃
Work Humidity	<95%
APO	10min
Dimensions	16.5×8.0×3.5cm
Weight(g)	280g

Power Meter with a chip microcomputer control and the large-screen graphics LCD, it can provide precision measurement from 0.65 to 1.65μm wavelength ranges and measuring range including -70 to +6dBm, -50 to +26dBm. Optical power meter can test the PM power to the light, light stability, insertion loss, optical transmittance, reflectance of light and so on. It widely used in optical fiber communications, CATV, Fiber Optical Sensors etc. It is indispensable for scientific research and engineering construction.
