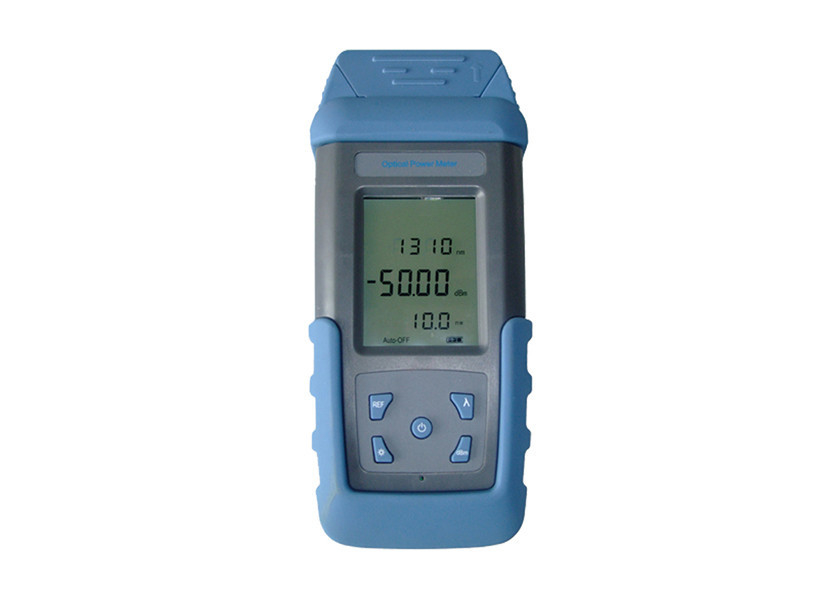

Portable Optical Power Meter 800nm - 1700nm For CATV / FTTH Network
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Optical Power Meter Tester | Type: | FOC-800K |
|---|---|---|---|
| Test Range: | 800~1700nm | Power Test Rangector: | -50~+26dBm Or -70～+3dBm |
| Connectors: | FC, ST, SC, LC | Application: | Fiber Installation & Maintenance |
| High Light: | fiber optic power meter,visual fault locator |
||
Portable Optical Power Meter 800nm - 1700nm For CATV / FTTH Network
Quick Detail:
- Optical power meter FOC800K
- Test range: 800~1700nm
- Power test range: -50~+26dBm or -70～+3dBm
Description:
With a wide range of functions, FOC800K optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
FOC800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV network or long-distance fiber network and other situations.
Functions
- Multi-wavelength precise measurement
- Absolute power measurement of dBm or xW
- Relative power measurement of dB
- Auto off function
- 270, 330, 1K, 2KHz frequency light identification and indication
- Low voltage indication
- Applicable to versatile adapters (FC, ST, SC, LC)
- Handheld, large LCD backlight display, easy-to-use
Specifications
|
Wavelength range (nm) |
800~1700 |
|
Detector type |
InGaAs |
|
Standard wavelength(nm) |
850, 1300, 1310, 1490, 1550, 1625 |
|
Power testing range (dBm) |
-50~+26 or -70～+3 |
|
Uncertainty |
±5% |
|
Resolution |
Linearity: 0.1%, Logarithm: 0.01dBm |
|
General specifications |
|
|
Connectors |
FC, ST, SC or FC, ST, SC, LC |
|
Working temperature (℃) |
-10~+50 |
|
Storage temperature (℃) |
-30~+60 |
|
Weight (g) |
430 (without batteries) |
|
Dimension (mm) |
200×90×43 |
|
Battery |
4 pcs AA batteries (lithium battery is optional) |
|
Batteryworking duration(h) |
No less than 150 (according to battery volume) |
|
Auto power off time (min) |
10 |
FOC800K Standard Module:
|
Model No. |
Power test range(dBm) |
Adapter interface |
|
FOC800K-A |
-50～+26 |
FC,ST,SC |
|
FOC800K-B |
-50～+26 |
FC,ST,SC,LC |
|
FOC800K-C |
-70～+3 |
FC,ST,SC |
|
FOC800K-D |
-70～+3 |
FC,ST,SC,LC |
Please tell us the model No. you need, and we can give you a proper price.
