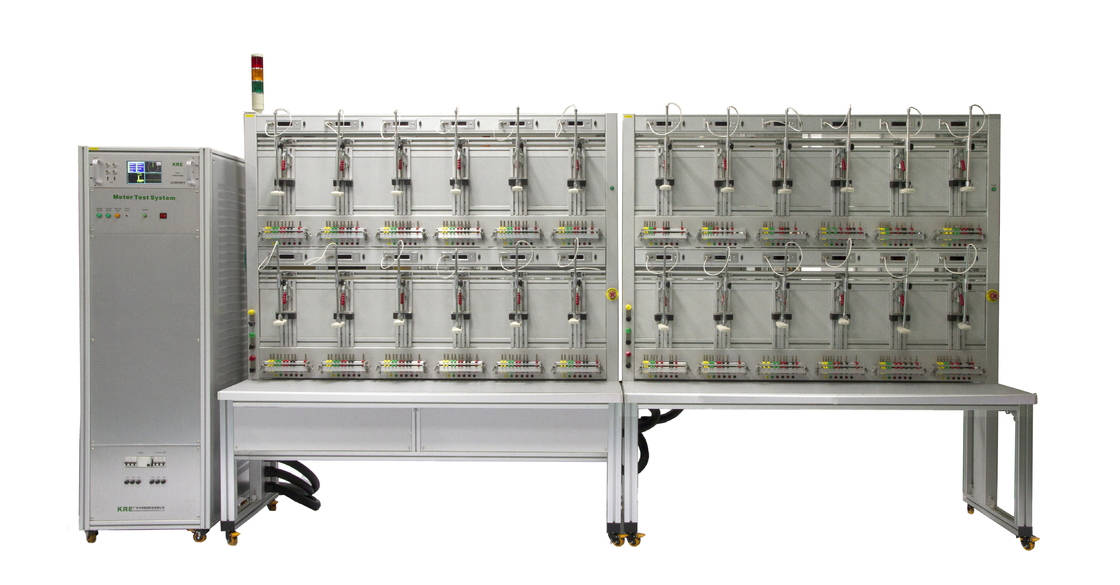

24 Position Energy Meter Test Equipment For Electric Meter Calibration 3 Phase

24 Position Energy Meter Test Equipment For Electric Meter Calibration 3 Phase

1. Phase: Three Phase
2. Accuracy Class:  0.05%
3. Name: Energy meter test equipment, electric meter test bench
4. Meter position: 6 / 12 / 24 / 48 position
5. Usage: Auto Electric meter test and calibration
6. Power: Electronic
7. Voltage Output: 3×(24V – 300V)
8. Current Output:  3×(1mA – 120A)
9. Operating Temperature: -10°C -- +40°C
10. Adopt multi-serial port system

24 Position Enery Meter Testing Equipment for Electric Meter Calibration 3 Phase

KE8301 is used for the test of three phase four wire (3P4W) and three phase three wire (3P3W) electrical and mechanical meters, multi-function meters, smart meters, and multi-user meters of electric power company, meter manufacturing company and institutes of metrology, it can also do the test and calibration of single phase energy meters

Highlight:

• Integrated/separated aluminum alloy structure, light and reliable, flexible choices
• Meter positions can be chosen from 6-24
• Auto protection of short circuit of voltage, open circuit of current, and overload.
• Test of neutral current (optional)
• Auto mark locking increases the efficiency of test
• Full automatic, semi automatic and manual operation available
• Supporting bar code input, which increase the efficiency of input
• Simultaneous test of the meters with same specification, different constants and different classes.
• Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters( optional)
• Test of tilt impact (optional)
• Forward and reverse active energy/ Forward and reverse reactive energy error test
• Creeping and starting test
• Standard deviation, 24 hour variation test
• Timing error test
• Influencing quantity test of voltage, frequency, harmonic
• Calibration and verification of constant
• Register indicating value, register combination error test
• Powerful computer management system, easy and user-friendly
• Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms

Main specifications:
