Fiber Opitc Power Meter used for Fiber Cable Telecom Installation
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | fiber optic power meter,fiber optic tester |
||
|---|---|---|---|
Fiber Opitc Power Meter used for Fiber Cable Telecom Installation
Quick Detail:
High sensitivity, large dynamic range
Universal connector interface FC/SC/ST
Quick response, without warm-up and reducing testing time
Low-voltage display function
Optional auto-shutdown
Automatic calibration function
The relative ratio test
Large LCD display and backlight
Description:

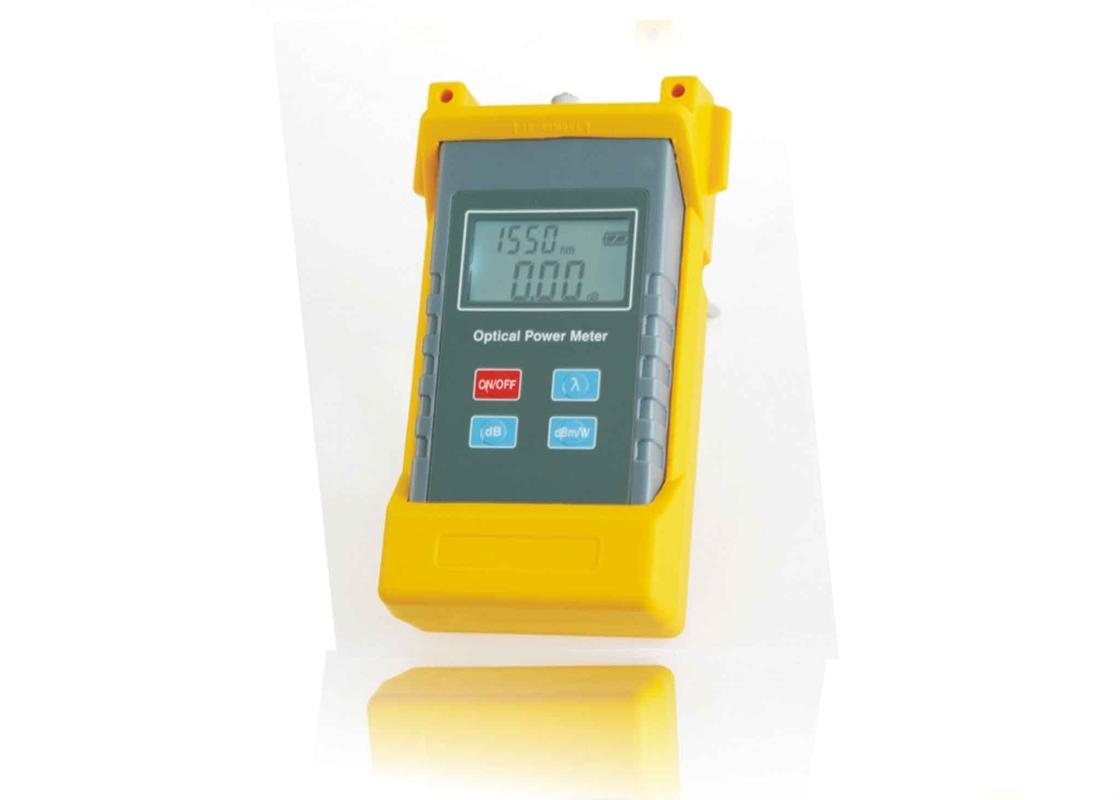

SD503 Handheld Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. It features smart appearance, backlight, auto-shutdown and wider dynamic range, good testing precision and universal optical connector for FC/SC/ST.
Applications:
Fiber cable Telecom installation
Fiber optic communication maintenance
Fiber Optic R&D and Training
Optical fiber cabling system
Specifications :
Type | BD503A | BD503B |
Wavelength (nm) | 800～1650 | |
Detector | InGaAs | |
Optical Connector | FC SC ST/ Universal 2.5mm adaptor (LC,MU can be optional ) | |
Measurement Range(dBm) | -70～+10 | -50～+26 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625 | |
Resolution (dB) | 0.01 | |
Power Supply | 3pcs AAA 1.5V batteries | |
Battery working time (h) | 120 | |
Operating Temperature (℃) | -10～+50 | |
Storage Temperature (℃) | -20～+70 | |
Automatic shutdown(min) | 10 | |
Dimension (mm) | 125*65*29 | |
Weight (g) | 160 | |
Competitive advantages:
Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.
All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.
We wish to create better future of optical communication industry jointly with both new and existing customers.
