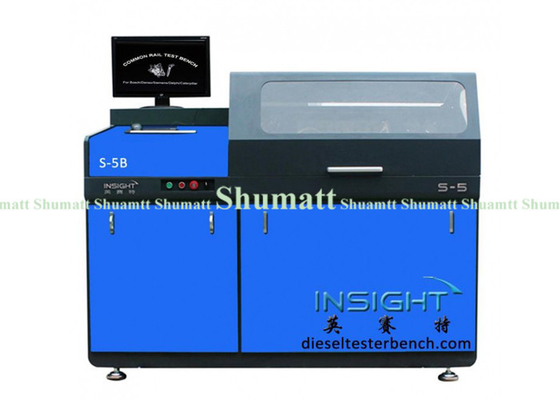

High Power Diesel Fuel Pump Test Bench Tester Machine with Latest Version Control Software
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | CRI Test Bench S5B | Weight: | 550KG |
|---|---|---|---|
| Usage: | Auto Testing Machine | Package: | Wooden Box Packing |
| Applicable Models: | For All Injectors Testing | Type: | Common Rail Test Bench |
| Rail Pressure: | 0-2200BAR | Voltage: | 380v / 220v |
| High Light: | diesel fuel pump test bench,diesel injection pump tester |
||
Latest Version Control Software Diesel Pump Test Bench With Free Update Lifetime S5B Tester
How is S5B tester?
S-5B is designed to be able to test all types of EURO III, EURO IV CR injectors and pumps automatically.
Including Bosch, Delphi, Denso, Siemens, CAT and latest piezo injector test, type inline CR injectors and pumps system data plans, and it features in complete test data.
Software and database is upgraded periodically, and new models, types or new makes common rail injectors are included as they appear in the market.
S5B common rail injection pump tester with basic features which enough start repairing injector pumps with minimum investment.
It will be fully meet repair requirement. It use industrial level quality configuration , and the important parts imported from BOSCH Germany and other famous brand worldwide.
Its database including thousands of oil pump and injector data. All these data is completely match with original standard data. We give 1 years warranty, and software enjoy free update for 6 years.
With the data self learn and data add automatically function, you can DIY any kind of data adjust and finish all kinds of systems test accordingly. This Test Plan Calibrator module to enable users even no experience to create test plans for new injectors & pumps.
Features of Test Bench S5-B Testing Stand:
1:Latest version control software and drivers, free update lifetime
2: 7 degree Euro III standard oil filter: accuracy reaches 2 μm
3: User friendly DIY, reset and adjust data plans data make it applicants for all kinds of oil pump and injector.
4: 3 steps protection of wrong use making test life easy to understand and help to save a lot.
5: Complete Automatic Testing, results are show with easy to understand test report.
6: Precise test data report and good quality base on main parts imported from original Bosch, Australia , and Italy brand parts.
7: Good expansibility, support extend to EUP/EUI function easily.
8: High stability, product will be going with 1000 hours pressure test before ship. We already have more than 5000 users in Chinese market.
9: Insight has training shop and 24 hours after sales service support. We supply Repair manuals for repairing various common rail injectors and pumps.
Test Bench S-5B Specifications
1. Important components of diesel injection system equipment S5B
|
High-pressure pump |
Original BOSCH CP3H pump |
|
Common rail tube |
Original BOSCH |
|
Common rail pressure Sensor |
Original Bosch Sensor |
|
Fuel metering valve |
Original Bosch Valve |
|
Common Rail Pressure System |
Max 2200bar |
|
Flow sensor |
Australia TRIMEC |
|
Injector Flow sensor |
≥700 ml/min |
|
Pump Flow sensor |
≥3000 ml/min |
|
Injector Flow sensor accuracy |
0.5 ‰ |
|
Pump Flow sensor accuracy |
1‰ |
|
Passage switching solenoid valve |
2 pcs, made in Italy |
|
DRV valve |
BOSCH 0281002507 |
|
Rail Fuel pressure set-up time |
3 sec |
|
Quick start |
Yes |
2. Software system of diesel injection system equipment S5B
|
BOSCH |
Common rail injectors and common rail pump |
|
DELPHI |
Common rail injectors and common rail pump |
|
DENSO |
Common rail injectors and common rail pump |
|
SIEMENS |
Common rail injectors and common rail pump |
|
Piezoelectric crystal injectors |
Spport |
|
EUP/EUI |
Optional |
|
HP0 |
Optional |
|
Injector Quick test |
5 min |
|
Injector Test Projects |
5 |
|
Injector Sealing test |
Yes |
|
Injector Max test |
Yes |
|
Injector Back flow |
Yes |
|
Injector idle test |
Yes |
|
Preinjection test |
Yes |
|
Injector Data |
Yes |
|

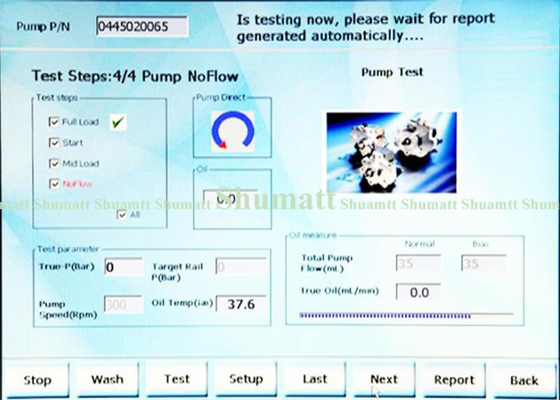

Pump Quick test |
4 min |
|
Pump Test Projects |
4 |
|
Pump Max test |
Yes |
|
Pump Start test |
Yes |
|
Pump medium test |
Yes |
|
Solenoid valves and pumps metering valve test |
All SCV,PCV IMV ZME valves |
|
Pump Data |
Yes |
|
EUI/EUP Test Projects |
4 |
|
EUI/EUP Max test |
Optional |
|
EUI/EUP medium test |
Optional |
|
EUI/EUP idle test |
Optional |
|
EUI/EUPStart test |
Optional |
|
EUP/EUI Data |
Optional |
|
Piezoelectric crystal injectors |
Support |
|
EUP/EUI |
Optional |
|
HP0 |
Optional |
|
Auxiliary Repair Tools |
Support |
|
DIY Data |
Support |
|

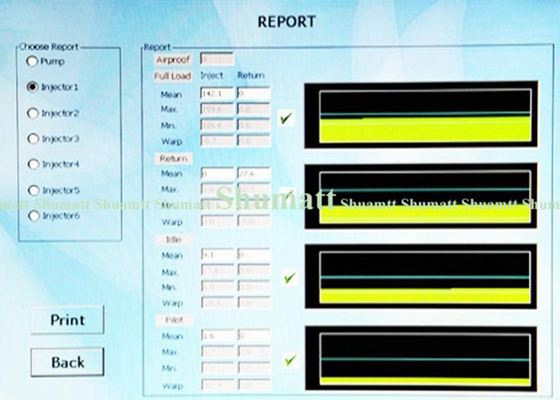

Test report |
support |
|
Test report save |
Yes |
|
Test report Customization |
Yes |
|
Adverse Report |
support |
|
trouble code |
Support |
|
Maintenance Remind |
Support |
|
Screen Show |
19 inch LED display shows the inspection process, operation, test reports, bug reports |
3.Host control section of diesel injection system equipment S5B
|
Chipset |
Intel ARM X9 |
|
USB port |
4 |
|
VGAport |
1 |
|
Operating system |
WindsCE |
|
Printer |
minitype thermal Printer |
|
Design standards |
Industrial control standards |
4. System filtration and protection of of diesel injection equipment S5B
|
Filters |
7 |
|
Clogging reminder system |
Yes |
|
primary standard Filter |
2, Euro III standard |
|
secondary standard Filter |
5, Euro III standard |
|

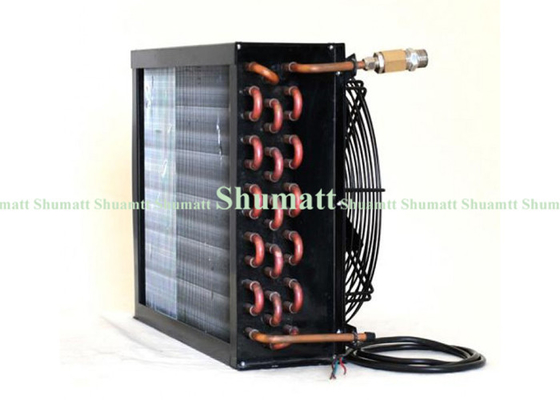

Cooling method |
3 synchronous cooling |
|
Fuel Cooling method |
Electric cooling fan blades |
|
Radiator numbers |
3 sets |
|
Fuel tank |
Combined automatically classified tank |
|
Main tank capacity |
45L |
|
Auxiliary fuel tank |
10L |
5. Ancillary apparatus of Diesel common rail test bench S5B
|
Host voltage |
220V/380V |
|
Motor power |
11kw |
|
Low pressure oil motor power |
1.1kw |
|
inverter |
11kw |
|
Work Lights |
Yes |
|
mist eliminator |
Yes |
|
Access Switch for test chamber |
Yes |
|
Display |
19 inch LED screen |
6. Diesel injection test equipment S5B Aids tool
|
Injector Test Fixture |
Yes |
|
Oil collector |
Yes |
|
Pump repair tool |
Optional |
|
Pump disassembly Tool |
Optional |
|
Injector repair tools |
Optional |
|
Injector disassembly tool |
Optional |
7. Update and warranty of diesel injector test stand S5B
|
Update method |
U disk update |
|
Warranty |
1 year |
|
Data add |
DIY manually add and U disk update |
|
Free Update |
6 years |
8. Diesel testing equipment S5B Packing
|
|
1900*830*1600mm |
|
GW |
850KG |
|
NW |
800KG |
|
Packing |
Environmentally friendly packaging, export fumigation wooden plywood |
