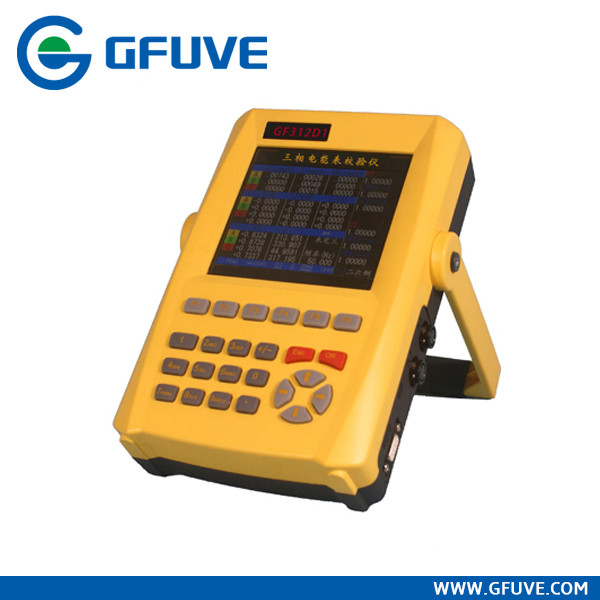

GF312D1 HANDHELD THREE PHASE ENERGY METER CALIBRATOR

INTRODUCTION:

The instrument is a precision AC energy meter testing instrument, mainly used to test three phase energy meter error on site and measure all various of AC parameters.

Features and Functions:

• Three phase active or reactive electricity energy meter.
• Calibrate three phase, single phase, and active or reactive meter error.
• Measure U(voltage) of three phase or single phase.
• Measure I(current) of three phase or single phase.
• Measure active power of three phase or single phase.
• Measure reactive power of three phase or single phase.
• Measure apparent power of three phase or single phase.
• Measure power factor of three phase or single phase.
• Measure phase angle between voltage and current.
• Measure frequency of power line.
• Display vector diagram.
• Display waveform of U and I.
• Analyze and display content of harmonic of U and I.
• Measure 2-64 harmonic of U, I.
• Store and display measured data.
• Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp.
• Measure CT variable ratio.
• Measure the ratio or lag-angle of low-voltage transformer.
• Adopt 32 bit ARM processor, multi-channel 16 bit precision A/D convertor, high resolution TFT color LCD.
• Inner equipped with 0.01% wide-range current transformer and can be equipped with various type current clamps, wide range of measurement and high veracity.
• Low consumption circuit design, high energy Lithium battery supply, intellectual power management software, which enables the instrument continuously working up to 10 hours.

PARAMETERS:
