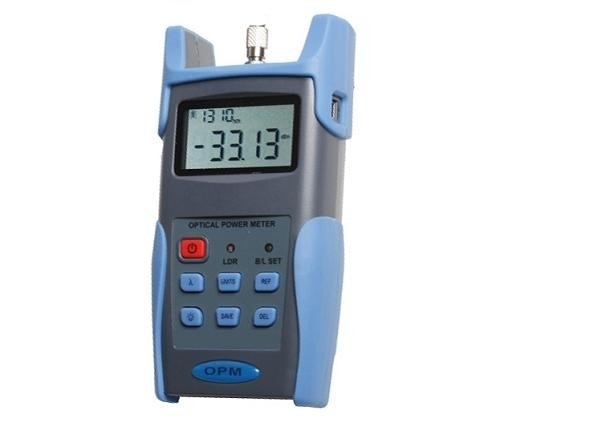

Power Meter X-3216
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | fusion splicer,fiber splicing machine,pon power meter |
||
|---|---|---|---|
Feature
Auto wavelength identification & switching
Auto frequency identification
2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
Intelligent backlight
1000 records storage or download via USB cable
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
Up to 200hrs battery life
Specifications
Model | X-3216A | X-3216C | |
Calibration Wavelengthnm | 850/1300/1310/1490/1550/1625 | ||
Detector type | InGaAs | ||
Measurement RangedBm | -64 | -24 | |
Uncertainty (dB) | 0.153.5% | ||
linearity (dB) | 0.02 | ||
Display resolution(dB) | 0.01 | ||
Frequency IDHz | 2703301K2K | ||
Wave IDnm | 1310149015501625 | ||
Date Storage Capacity | 1000 | ||
Communication Port | USB | ||
Connector | FC/SC/ST Interchangeable | ||
Alkaline battery | 3*AA1.5V | ||
Power Adapter(V) | 8.4 | ||
Battery Operating time (h) | 200 without backlight | ||
Operation Temperature(℃) | -10°+60 | ||
Storage Temperature(℃) | -25°+70 | ||
Dimension(mm) | 175*90*44.5 | ||
Weight(g) | 231 | ||
