Impulse Voltage Generator Test , AC Peak Measures , Reference Impulse calibrator

voltmeters for impulse voltage generator test ,AC peak measures

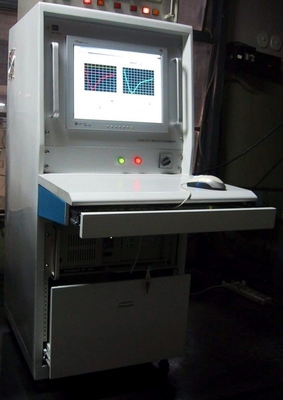

Impulse voltage generator (a kind of high voltage generator of impulse wave, used to test the insulation performance of electrical equipment when subject to over voltage (lightning strike) in atmosphere.)

Impulse voltage generator is a kind of high voltage generator of impulse wave, used to test the insulation performance of electrical equipment when subject to over voltage (lightning strike) in atmosphere. The impulse voltage generators produced by the Company can be divided into L type and H type by structure, be divided into indoor fixed type, indoor air cushion type, outdoor fixed type and quick-mounting type by working environment and be divided into swinging arm type and stationary type by discharging manner.

AC peak voltmeter

Main features:

The FZG peak voltmeter is featured by automatic shift of measurement ranges, visualization of waveforms, display of tested voltages with preset divider ratio, and storage of values during disruptive discharge.

Technical parameters:

Application conditions: ambient temperature -10℃-50℃

 relative humidity≤90%

Measurement quantities: AC sine wave peak value, peak/√2, true RMS

Frequency range: 0-1000Hz

Input voltage: 10V-1600VAC

Input impedance: ≥5MΩ

Divider ratio: 0.0-9999.9

Accuracy: <±1%

Display: LCD (voltage and waveform)

Power supply: 220V+10%

Impulse voltage peak voltmeter

The FZC impulse voltage peak voltmeter is used to measure single impulse voltages with front time over 840nS. It can also be used to measure and store peak values of impulse voltages, chopped impulse voltages, and other types of single impulse voltages.

Main features:

The FZC peak voltmeter is featured by automatic shift of measurement ranges, LCD visualization of tested voltages with preset divider ratio. It adopts special layout of standard industrial control bus.

Technical parameters:

Application conditions: ambient temperature -10℃-50℃

 relative humidity≤90%

Measurement quantities: single impulse voltages

Input voltage: ±20V-±1000V

Input impedance: 1MΩ//30PF

Divider ratio: 0.0-9999.9

Accuracy: <±1%

Rise time: approx. 840nS

Display: LCD

Power supply: 220V±10%

Reference impulse calibrator

The BZF reference impulse calibrator is used for the calibration of impulse measuring system by generating full LI, LIC and SI.

Technical parameters:

Peak value: ±80V to ±1000V

Full LI

Front time: 0.84μS

Time to half value: 60μS

LIC

Chopping time: 0.5--6μS (adjustable)

Full SI

Peak time Tp: 250μS

Time to half value T2: 2500μS

Stability (LI&SI): ±0.5%

Accuracy (LI&SI): ±0.5%

Stability (LIC): ±1.0%

Accuracy (LIC): ±1.0%
