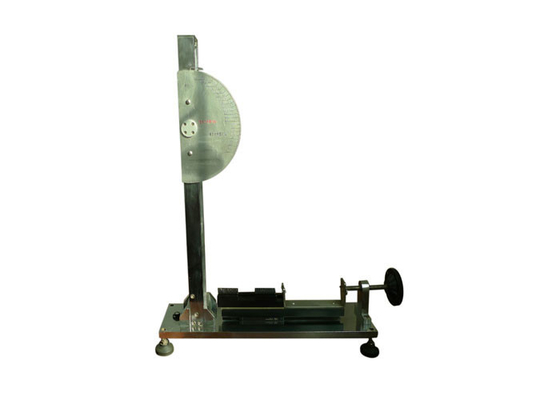

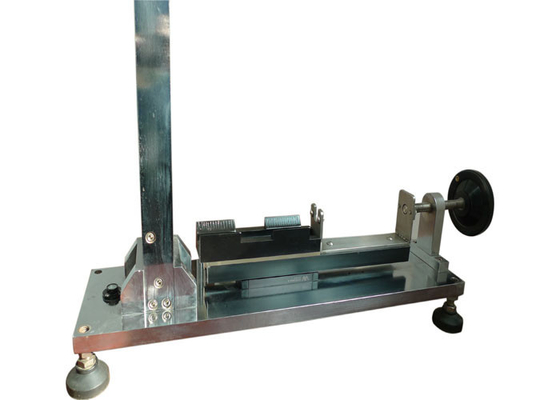

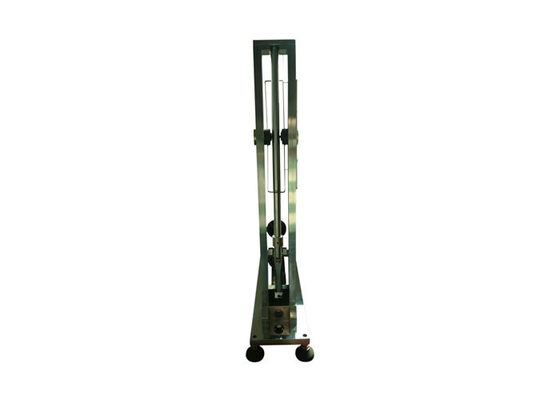

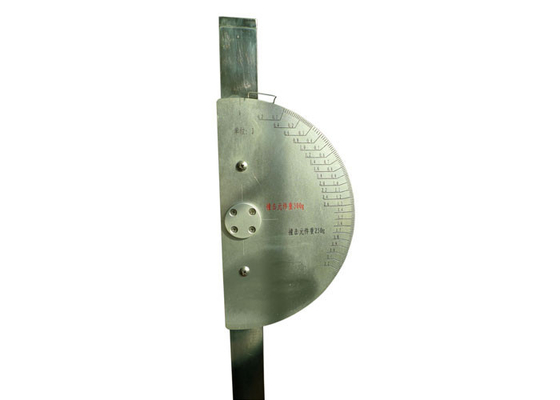

IEC60068-2-75 Spring Hammer Calibration Apparatus For Laboratory

Calibration Device For Spring Hammer Calibration Apparatus

Product details:

As the requirements shown in the IEC60068-2-75, this calibration device is used to test the impact energy of the spring hammer. It is the special equipment for the laboratory.

Technical parameters:

Accuracy: 0.01J

The maximum measuring range: 0-2J

Impact energy: Max. 2J.

The weight: Copper weight cover(2J)

Guide groove diameter: 51mm
Pendulum: Steel.
Diameter pendulum: 20mm.
Length pendulum 635mm ± 2,5mm.
Pendulum H: 120mm ± 2mm.
Pendulum D: 20mm ± 0,5mm.
Pendulum W: 4mm ± 0,01mm.

The energy loss of the pendulum: <0.002j
Release device: Ac. Mechanic.

Trigger distance: >30mm
Reference: IEC 60068-2-75 fig. B1.
