Thermal Adjustable Temperature Switch Calibration With Automatic Reset For Bolier

Thermal Adjustable Temperature Switch Calibration With Automatic Reset For Bolier

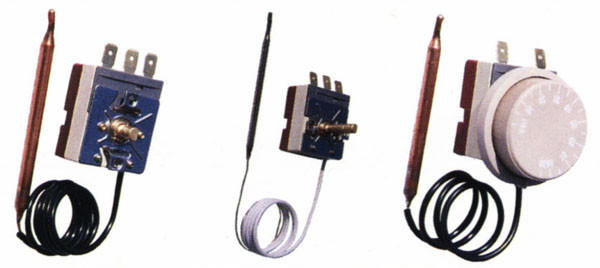

Automatic reset capillary thermostat for water heater

Capillary thermostat working principle:

The capillary thermostat operates on the principle of fluid expansion. A temperature change in a fluid filled sensing system consisting of probe (also called bulb), capillary and diaphragm capsule, produces a volume change. The resulting movement of the diaphragm acts through a mechanism to operate the micro switch. i.e a single pole, single throw normally closed circuit breaks (opens) on rise of temperature.

• Rated voltage and current: 250V AC, 16A
• Designed temperature: -35°C to 350°C

• Cycles life : 100,000 cycles

Specification

Description:

WY-I series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point.

Applications:

■ - 10 / +16 Refrigeration
■ -35 / +35 Fridge
■ 0 / 40 Ambient
■ 0 / 85 Boliers / Water heaters
■ 0 / 93 Dishwashers
■ 30 / 110 Bain Marie
■ 60 / 200 Deep-fryer
■ 50 / 250 Oven
■ 50 / 300 Oven
■ Other ranges upon request
