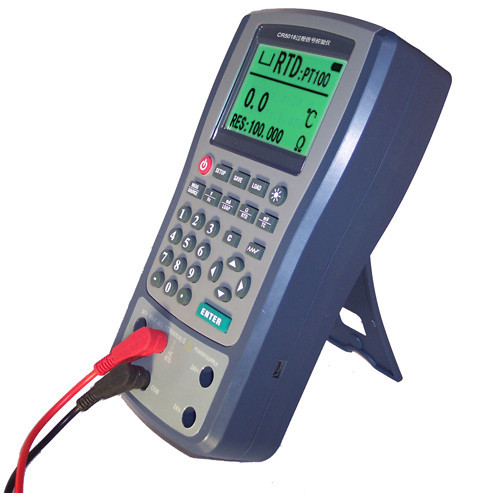

CR6018 High-accuracy thermal instrument calibrator
|
Product Details:
|
Detailed Product Description
PRODUCT DESCRIPTION:
This calibration instrument is the table-type calibrator designed for doing high accuracy, multifunctional calibration. It is mainly applied for the measuring and calibrating on-site. CR6018 calibrator supports variety of signal types, such as the pressure, current, resistance, frequency, thermocouple, thermal resistance and so on. The highest accuracy is up to 0.01%.
PERFORMANCE FEATURES:
★Measurement output is absolutely isolated without interference with each other
★Analog output the standard thermal resistance signal; provide very high accuracy which can even compare with the resistance box.; test and calibrate various thermal resistance temperature instrument
★Intelligent and convenient operation system: automatic signal output directly after keying in any numbers
★High-brightness display with 6 digits; internal thermal electric dictionary available
★Power supply: huge volume chargeable battery or alternating current; applicable for the metrology lab or on-site use
★Different range pressure modules available; pressure measurement range from -.01MPa~260MPa; 5 digits display; pressure accuracy up to 0.025%.
(When ordering, please specify the model according to the options below)
CR6018 High-accuracy thermal instrument calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output various signals, such as: voltage, current, current loop, frequency, mV, various thermal resistance and thermocouple.
CR6016 Thermal resistance calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output signals of analog resistance and various thermocouples and so on;
CR6015 Thermocouple calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output mV and various thermocouples signals.
CR6014 Pressure calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output voltage, current and other signals.
3. Pressure range: -0.1MPa~260MPa (optional).
CR6013 Multi-function return-circuit calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output the signals of direct voltage, current, current loop and so on.
CR6012 Temperature calibrator:
1. Accuracy: 0.01%, 0.02%, 0.05%.
2. Able to measure and output the signals of analog resistance, mV, various thermal resistance and thermocouple
