Handheld Ultrasonic Flow Meter A E 80FB User Friendly Handheld Ultrasonic Flow Meter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | A+E 80FB | Measuring Principle: | Acoustics |
|---|---|---|---|
| Measuring Media: | Liquid | Accuracy: | >± 1% |
| Measurement Object: | Closed Pipeline | Size: | Dn15-6000 (1/2" To 236") |
| Main Application: | Water, Diesel Fuel, Fuel Oil, Corrosive Liquid/Gas, Sea Water, Alcohol | Sensor: | Clamp-on/External |
| Sensor Temperature: | -40 To 160 C (32 To 320 F) | ||
| High Light: | detector device,detection instruments |
||
(A+E 80FB)User-Friendly Handheld Ultrasonic Flow Meter
Handheld Ultrasonic Flow Meter , Flow Meter ,(A+E 80FB)User-Friendly Handheld Ultrasonic Flow Meter
Product Details
Basic Info.
Model NO.:A+E 80FB
Type:Ultrasonic Flow Meter
Measuring Principle:Acoustics
Measuring Media:Liquid
Certification:SGS, ISO
Accuracy:>±1%
Measurement Object:Closed Pipeline
Application:Industrial, Energy, Environmental
Size:Dn15-6000 (1/2" to 236")
Main Application:Water, Diesel Fuel, Fuel Oil, Corrosive Liquid/Gas, Sea Water, Alcohol
Sensor:Clamp-on/External
Item:Ultrasonic Flow Meter
Sensor Temperature:-40 to 160 C (32 to 320 F)
Repeatability:0.2%
Battery Operation:15 Hours (1900mAh Ni-MH Battery)
Internal Data Logger:Min. 2GB SD Card
Output:RS485
Display:2 Lines Characters LCD Screen
Units:Gallon, Cubic Feet, Cubic Meter, etc.
Amb. Temp:-20 to +75 C ( -4 to +167f)
Pipe Size:15~100mm, 50~700mm, 300~6000mm
Export Markets:Global
Product Description
User-Friendly Handheld Ultrasonic Flow Meter (A+E 80FB)

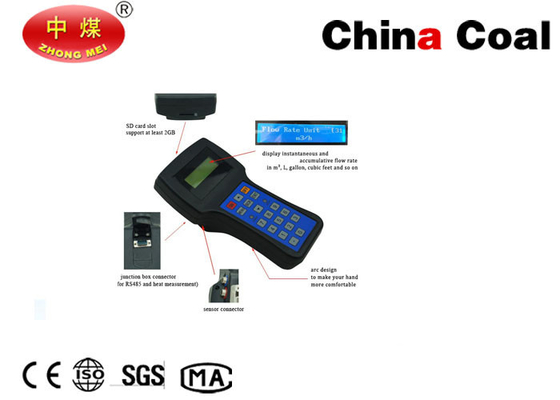

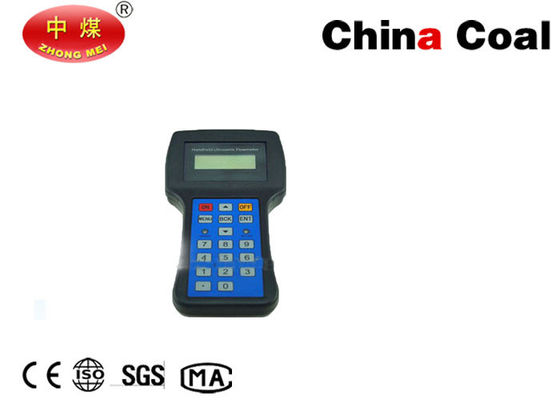

The ultrasonic flow meter is a handheld type with clamp-on sensor which offers a variety of optional features. It is a compact and robust instrument that comprises additional functions that can turn it into more than just a flow meter.
This ultrasonic flow meter is widely used to measure water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave. Pipe line sizes range from 15 to 6000mm.
Features
-- Ultrasonic flow meter
-- Real time data transfer
-- Intuitive flow meter menu
-- Heat measurement function optional
-- Data logger and SD card support
-- Light weight (600g) and low cost (down to usd450)
-- Easy installation and operation
-- Measuring temperature from -40 to160 C
-- Blue nice appearance
Specifications
Flow Element
Power requirements: Built-in 24V Ni-MH battery (1900mAh) provides 15 hrs of continuous operation, charging: 220V AC 56/60 Hz
Inputs/Outputs: 4-20mA, RS232 / RS485, Heat Flow
Dispaly: 2 line characters display instantaneous and accumulative flow, velocity and signal status
Units: m³(/s/m/h/d), cubic feet, litre, gallon, etc.
Ambient conditions: -20 °C to +75 °C, 0 to 85% relative humidity
Size: 220*120*92mm, 600g
Flow rate: 0-10m/s
Accuracy (at calibrated conditions): Flow: ± 1%FS reading, Heat: ± 2%
Repeatability: 0.2%
Parameters:
|
Technical parameters |
Standard S1 |
M1 |
L1 |
S1H |
M1H |
HS bracket |
HM bracket |
|
Applicable pipe (mm) |
15~100 |
50~700 |
300~6000 |
15~100 |
50~700 |
15~100 |
50~700 |
|
Material |
Aluminum alloy |
PES (Polyether Sulfone) |
|||||
|
Working frequency |
1 MHZ |
||||||
|
Installation method |
V (N,W) |
V,Z |
Z method |
V (N,W) |
V,Z |
V (N,W) |
V,Z |
|
Calibration |
Pairing & Calibrating for the complete machine |
||||||
|
Magnetism |
Yes |
N/A |
Yes |
||||
|
Applicable temperature |
-40~90 °C |
-40ºC~160 °C |
|||||
|
Protection |
IP68 |
||||||
|
Media type |
Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave |
||||||
|
Medium turbidity |
<20000ppm with low bubble content |
||||||
|
Applicable pipes |
Uniform and compact pipes made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted. |
||||||
|
Pipe lining material |
Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene etc. |
||||||
|
Signal cable |
Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional. |
||||||
Other Options and Accessories

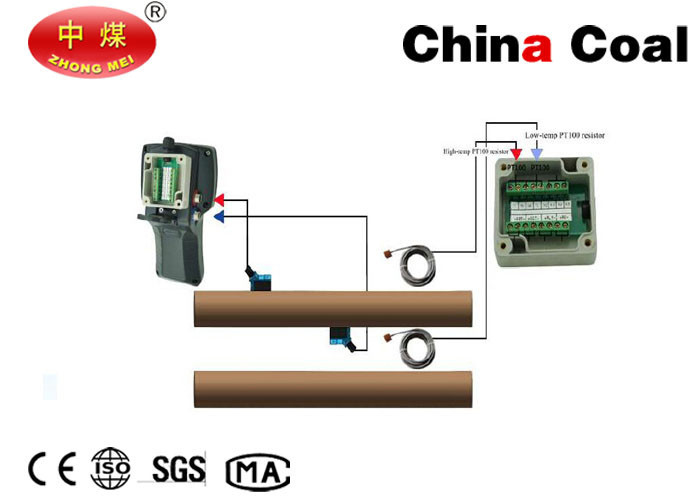

The ultrasonic flow meter with optional heat flow module installed is designed to measure the rate and quantity of heat delivered to a given building, area or heat exchanger. The device measures the volumetric flow rate of the heat exchanger liquid (water, water/glycol mixture, brine, etc.), the high temperature at the inlet pipe and the low temperature at the outlet pipe. Heat delivery is calculated by the following equation.
Rate of heat delivery = Q*(Tin - Tout)*c
Where
Q = volumetric flow rate
Tin = high temperature at the inlet
Tout = low temperature at the outlet
C = specific heat of the liquid
Feature Photo
