Co-Extrusion WPC PVC Plastic Foam Board Production Line / Extrusion Machinery

Large Image : Co-Extrusion WPC PVC Plastic Foam Board Production Line / Extrusion Machinery Get Best Price

Product Details:

Place of Origin:	Qingdao Shandong China
Brand Name:	WEIER
Certification:	CE and ISO9001:2008 and SGS
Model Number:	SJSZ-80/156

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	$110000-$150000/set
Packaging Details:	Film packing for free.
Delivery Time:	45working days since get 30%deposit
Payment Terms:	30% deposit paid by T/T, 70% balance paid after testing in supplier’s factory, before shipping by T/
Supply Ability:	25sets/month

Contact Now

Detailed Product Description

High Light:

plastic extruding machine

plastic extrusion machines

Co-Extrusion WPC PVC Plastic Foam Board Production Line / Extrusion Machinery

Parameter of PVC crust foamed board machinery

Description	Parameter
Feed material	PVC+ assistant materials +(can also add wood powder )
Production line speed	0.2-4m/min
Max. output	450kg/h
Outline size	30× 6× 3 L× W× H(m), unsaturated
Weight	16T
Total power	185kw
Actual energy consumption power	138kw
Consumed air	0.4m 3 /min
Atmospheric pressure	0.6mpa
Water cycle	0.3m 3 /min
Power	AC380V± 10%, 50HZ
Water	Industrial water, no impurity, with filtration treatment, pressure: 0.4Mpa temperature: 14-25° C
Work environment temperature	0-40° C

Consists list of pvc crust foamed board machine

1.SJSZ 80/156 conical twin screw extruder	one set
2.Die mould	one set

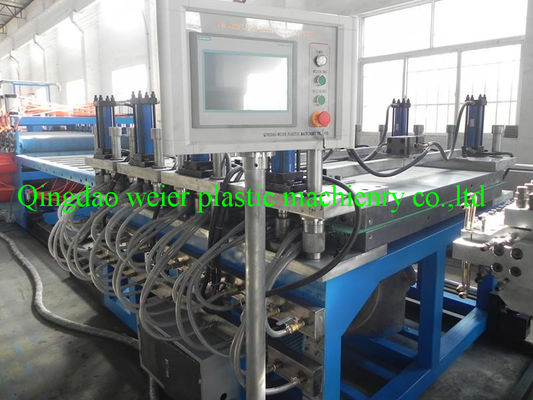

3.Hydraulic pressure calibration table	one set
4.Cooling conveying bridge	one set
5.Edge cutting uint	one set
6.Haul-off unit	one set
7.Length metering	one set
8.Transverse cutter	one set
9.Stacker table	one set
10.Electric cabinet	one set
11.Spare parts list	one set

PVC WPC co-extrusion foamed board parameters:

Main extruder and motr	SJZ80/156 conical double screw extruder 75kw
Co-extruder and motor	SJZ65/132 conical doule screw extruder 37kw
cooling roller	stainless steel
haul-off	8 roller haul-off 5.5kw
cutter	2.2kw feeding motor 1.5kw
output	450kg/h

Auxiliary machinery

wood powder making machinery	150-300kg/h
SRL-Z500/1000 mixer	500-700kg/h
PC500 crusher	300kg/h
SMF-600 miller	250-300kg/h

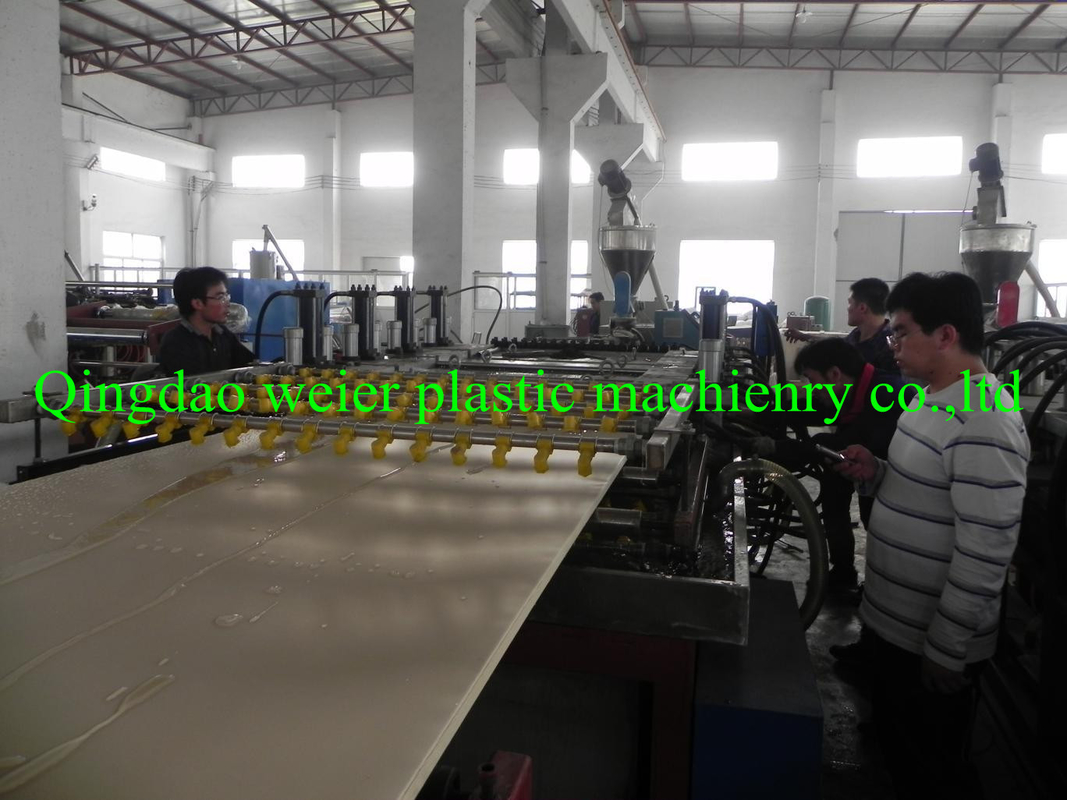

Finished products of pvc crust foamed board production machine

PVC furniture Foam Board is a kind of new material for home furnishing, such as furniture, cabinet, desk chair and building, upholster, advertising, transportation and exhibition, etc. It is heat formable, lead-free, flame retarded, water repellant, chemical resistance, lightweight yet rigid and durable.
