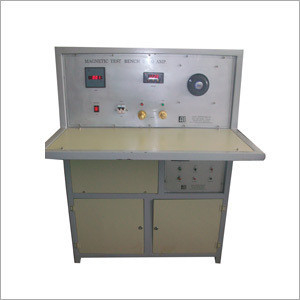

High stability single-phase energy meter Energy Meter Calibration Test Bench

High stability single-phase energy meter Energy Meter Calibration Test Bench

1.Certificate: ISO 9001;
2.Accuracy class: 0.05, 0.1,
3.High stability;
4.Prompt delivery
5.Excellent aftersale service

Main functions and features:

1-      apply to test all kinds of single-phase energy meter

2-      simultaneous measurements for energy meters with the same spec but different meter constant or different accuracy class.

3-      operation mode:SMS special keyboard and SMS PC software control

4-      display mode: error indicator on each meter position / PC monitor

5-      support below test items, include:

 no-load test
 start test
 basis errors test
 meter constant test
 voltage influence test
 meter reverse turn test
 energy counting test
6-      Auto-turnning up of photoelectrical scanning head

7-      full-automatic current/voltage measuring range switching

8-      auto-alarming protection against output voltage short circuit and current open circuit

9-      auto capturing the black dot on the rotor before starting test and no-load test

10-   Harmonic setting

11-   Waveform display

12-   keyboard current load testing point setting in common use: Imax4Ib2Ib1.5Ib1.0Ib0.5Ib0.2Ib0.1Ib, 0.05Ib

13-   keyboard voltage load testing point setting in common use: 1.2(1.15)Un1.1Un1.0Un0.8Un

14-   keyboard phasor testing point setting in common use:0.5C,0.5L, 1, 0.8C,0.8L

15-   programmable Voltage/ current/ frequency and phase angle

16-   support bar code input, error curve, error limit setting , multi-mode calibration plans setting and equipment authoriy by PC software

17-   support data processing and verification certificate printting with customized table format

18-   communication test. Specially equiped with RS485 communicaiton box for the impulse receiving and switching in order to test electronic multi-function meter (optional function)

19-   able to measure and save the circumstance temperature and relative humidity (optional function)

20-   forced device warmingup function can gurantee the accuracy and normal running.(optional)

 Technical Index:

1)Accuracy classes: 0.05,0.1,0.2.

2)Model: DZ601-24( meter position can be customized)

3)Equipped with 0.05 class three phase reference standard meter

4)The maximum output current: 120A; Ranges: 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A,
50A, 100A
5)Voltage is divided into four ranges: 57.7V, 100V, 220V, 380V

6)Voltage output power: 280VA per phase, current power: 450VA per phase

 7)For each range of current and voltage, 0~120% of the range value can be
continually adjusted, the resolution is better than 0.01% of range value
8)Accuracy of Indication Meter:

 Voltage meter: class 0.5, Current meter: class 0.5,

 Frequency meter: class0.3 phase meter: class 0.3

9)Phase scope 0~359.9 degrees, adjusted resolution is 0.1 degree

10)Testing points of power factor: 0.5C, 0.8C, 1.0, 0.8L, 0.5L

11)Range of frequency is from 45.00 to 65.00Hz, adjusted resolution is 0.01Hz

12)Shall set and measure 2-21 times harmonic and measure the distortion

13)Output power stability: 0.05%(PF=1.100Sec)

14)Wave distortion of outputting: < 1%

15)Voltage supply: AC220V+/-10% 50Hz
