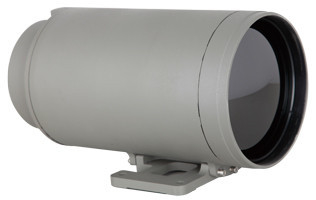

Un - Cooled IR Security Camera For Marine Navigation , Long Range Thermal Imaging Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | night vision binoculars,thermal imaging binoculars |
||
|---|---|---|---|
Un - Cooled IR Security Camera For Marine Navigation , Long Range Thermal Imaging Camera
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: DALI
Usage: Security oberservation
Theory: Infrared Thermometer
Detector type: Un-cooled FPA micro-bolometer
Array size: 384X288
Thermal sensitivity: ≤0.08°C@30°C
Frame frequency: 50Hz
Focus: motorized Zoom: X2
Spectral range: 8-14um
Encapsulation: IP67
Description:
Night-vision remote monitoring for frontier defense, coast defense, civil defense, vital establishment, military area, oil field, railways, airport, ports etc. and can be integrated to various type of optronic systems.
Applications:
Marine navigation
Personal security
Border surveillance
Hunting
Law enforcement
Technical specification:
|
Item |
DLD-B150 |
|
|
Detector |
Detector type |
Uncooled FPA microbolometer |
|
Array size/format |
384×288 |
|
|
Pixel size |
25um |
|
|
Wave range |
8-14um |
|
|
Image characteristics |
Field of view |
WFOV:9.17°×6.88 ° NFOV: 3.67°×2.76 ° |
|
Focal length |
150/60mm |
|
|
NETD |
≤100mK@30℃ |
|
|
Focus |
Electric focusing |
|
|
Frame rate |
50HZ |
|
|
Special resolution |
0.17mrad/0.42mrad |
|
|
Measurement |
Brightness/gain |
Manual brightness/gain; Automatic brightness/manual gain; Automatic brightness/gain |
|
Automatic brightness/gain configuration adjustment |
2 fixed patterns, 8 user-defined modes |
|
|
Polarity reversal |
Black hot/white hot |
|
|
Electronic zoom |
2x |
|
|
Noise reduction |
Yes |
|
|
Enhancement |
Yes |
|
|
Calibration |
Automatic timing calibration |
|
|
Cross division |
Demonstration/Hide away |
|
|
Environment requirement |
Work temperature |
-40℃-+60℃ |
|
Storage temperature |
-40℃-+70℃ |
|
|
Encapsulation |
IP67 |
|
|
Physical characteristics |
Weight |
≤6kg |
|
Dimension |
350mm×190mm×190mm |
|
|
Power supply |
Power consumption |
≤12W |
|
Interface |
External power |
YES(DC12V±20%) |
|
Video output |
PAL |
|
|
Communication interface |
RS485 |
|
|
Control protocol |
PELCO-D/PELCO-P/DALI |
|
|
Detection distance—to people(1.8m) |
>5400m |
|
|
Detection distance—to object(2.3m) |
>6900m |
|
|
Recognization distance—to people(1.8m) |
>1800m |
|
|
Recognization distance—to object(2.3m) |
>3400m |
|
