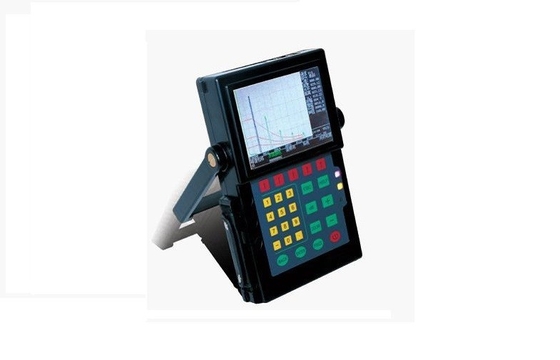

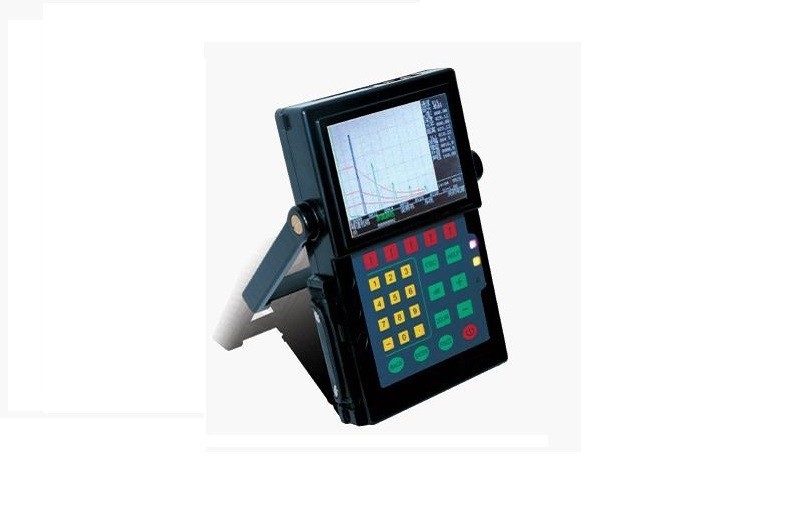

High Speed Non Destructive Testing Equipment , Ultrasonic Flaw Detector

Product Description:
high speed, large screen color field sends the demonstration, under the glare normal work
Fast crack detection, momentarily prompts crack detection help information

5 independent crack detection channel, 500 crack detection data storage

the non-memory effect highly effective lithium battery, guarantees continuously 4 hours working


Specifications:




Main Features:

Small dimension, lightweight, portable, fully-sealed, highly-reliable design especially suitable for working outdoors
Up to 640MHz sampling frequency, measurement resolution of 0.1mm with minimum range of 3m
Operating Frequency: 0.5 – 20MHz, surplus sensitivity up to 65dB
Bright, high resolution (640×480) color TFT display realizing the best measurement result in similar products

High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces

LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser

High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan

Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of on board Li battery is more than 6 hours

Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation, user-friendly design for menu, English/Chinese language menu options, English/Chinese input and edit functions make the inspection much easier

Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance

Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms

Automatically calibrate instrument specifications and search the peak value


Advantages:
Remarkable performance price ratio: 3600S colored digit ultrasonic flaw detector

The performance is stabler, carries is more relaxed

The demonstration is clearer, operation simpler；

The superiority two: compare in the volume is big；

The weight heavy table model ultrasonic flaw detector, has the unequalled scene to carry the superiority (complete machine weight 1.5 kilograms)；

Superiority three: high resolution colored TFT to demonstrate；

Superiority four: highly effective lithium batteries, after ultra long operating time；

Superiority five: disposition computer communication card and communication software, (basis customer request), the crack detection data may be directTransmits to the computer printing crack detection report .
