Night Vision Thermal Imaging Camera For Home Inspection , Thermal Imaging Binocular
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | night vision binoculars,compact thermal imaging camera |
||
|---|---|---|---|

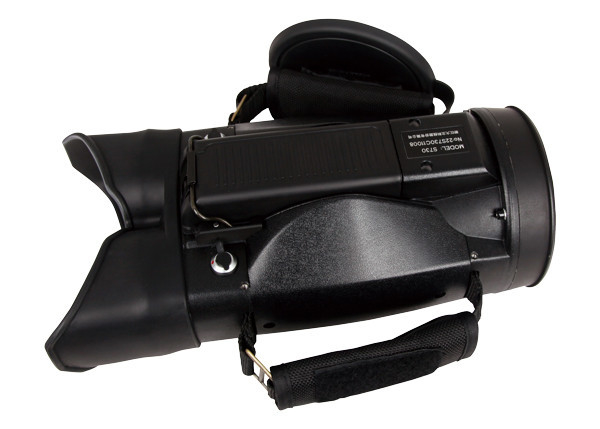

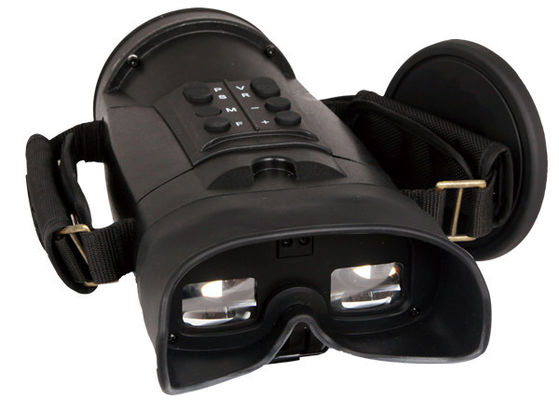

Portable Night Vision Thermal Imaging Camera For Home Inspection , Thermal Imaging Binocular
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: DALI
Model Number: S730
Usage: Security
Theory: Infrared Thermometer
Detector type: Un-cooled FPA micro-bolometer
Array size: 384X288
Lens option: 75mm
Thermal sensitivity: ≤0.08°C@30°C
Frame frequency: 50Hz
Focus: auto/manual
Zoom: X2
Spectral range: 8-14um
Encapsulation: IP67
Description:
With renewed figure and superior functions, S730 sets a new standard for small, lightweight thermal imaging cameras, which is your ideal choice for day and night security surveillance. Thermal image and video storage function stores the detection process as an evidence for review. Well sealed housing enables S730 with good encapsulation which fulfills the requirement of tough operation. With all these features, it is essential for public safety, police office and security operations.
Applications:
Marine navigation
Personal security
Border surveillance
Hunting
Law enforcement
Technical specification:
| Items | S730 | |
| Detector | Detector type | Uncooled FPA microbolometer |
| Spectral range | 8 - 14 µm | |
| Array size | 384×288 | |
| Pixel size | 35um | |
| Image characteristics | Lens | 75mm/F0.8 |
| FOV | 10.3°×7.7° | |
| IFOV | 0.47mrad | |
| NETD | ≤80mk@30℃ | |
| Focus | Fast auto-focus/Electronics focus | |
| Frame rate | 50Hz | |
| Image display | Display | Binocular OLED,800×600 |
| Auto standby | Sensitive | |
| Image storage | Storage card |
Built-in flash memory
|
| Storage mode | Picture/Video | |
| File format | JPEG/MPEG4 | |
| Storage capacity | More than 1000 images/2hours of video | |
| Function | Gain/Brightness adjustment | Manual/Automatic |
| Calibration | Automatic when start-up time, manual when working normal | |
| Digital zoom | 2X | |
| Polarity inversion | White/Black hot mode | |
| Reticle | Demonstration/hide away | |
| Noise reduction | Y | |
| Enhancement | Y | |
| Power supply | Battery type | Li-Ion,Rechargeable |
| Battery operating time | 3 hours continuous operation | |
| Charging system | Intelligent charger | |
| Power consumption | ≤4.5W | |
| Environment | Operating temp | -30℃～+50℃ |
| Storage temp | -40℃～+70℃ | |
| Humidity | ≦90％(non-condensing) | |
| Encapsulation | IP67 | |
| Physical | Weight | ≤1.54KG |
| Dimension | 263(L)mm×127(W)mm×114(H)mm | |
| Interface | External Power | Yes(DC 10-15V) |
| Video out | PAL,75Ω | |
| Data transmission | USB | |
| Remote control | RS422 | |
| Tripod mounting | Can be expanded (60° dovetail interface; 55.5mm ×90mm) | |
| Detection range | Human(1.8*0.5)m | 1900m |
| Vehicle(2.3*2.3)m | 2400m | |
| Recognition range | Human(1.8*0.5)m | 640m |
| Vehicle(2.3*2.3)m | 1200m | |
Competitive Advantage:
◆ Extremely compact and extremely light
◆ Image capture and recording
