High Precision Miniature Gear Head for Electric Power RC Car
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Plastic | Voltage: | 3 V |
|---|---|---|---|
| Rated Load Torque: | 182 Gf.cm | Rated Load Speed: | 46 Rpm |
| Transmission Reduction: | 216 | Diameter: | 12mm |
| Application: | Optical Equipment, Medical Device, Electronic Switch(lock), Toy, Robot, Electric Toothbrush, E-cigarette, And Etc. | ||
| High Light: | toy dc motor,rc planetary gearbox |
||

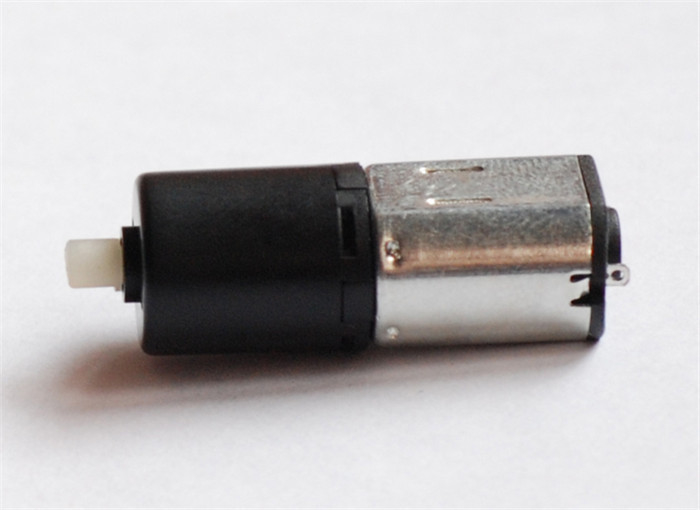

12MM High Precision Miniature Gear Head for Electric Power RC Car
Specifications
| Model | At Rated Load | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | ||
| Speed | Current | Torque | ||||||
| rpm | mA(MAX) | gf.cm | gf.cm | gf.cm | Ratio | mm | mm | |
| ZWPD012012-216 | 46 | 135 | 182 | 1200 | 3600 | 216/1 | 29.5 | 14.5 |
| ZWPD012012-256 | 39 | 135 | 162 | 2000 | 3600 | 256/1 | 33.3 | 18.3 |
| ZWPD012012-384 | 26 | 135 | 243 | 2000 | 3600 | 384/1 | ||
| ZWPD012012-576 | 17 | 135 | 365 | 2000 | 3600 | 576/1 | ||
| ZWPD012012-864 | 12 | 135 | 547 | 2000 | 3600 | 864/1 | ||
| ZWPD012012-1296 | 7.7 | 135 | 820 | 2000 | 3600 | 1296/1 | ||
Description
Quality Control
* Life Test
* Noise Test
* Water-proof Test : being put 10mm under the water working for 2 weeks and 100m under the water working for 12 hours
* Salt Spray Test : salt spray can test the products’ resistance to corrosion
* Impact Test : two objects striking each other at high relative speeds
* Storage Test : being stored under normal temperature for 1 or 2 years to test stability
* Environmental Related Substance
Main Products
High-precision DC PLANETARY GEARBOX MOTOR, stepper motors, coreless motors & screws and plastic mesons.Cost-effective solution for MOTION control & AUTOMAITON applications: medical, semiconductor, pumps, robotics, CNC, etc.
1)Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
2) Customized worm and gear transmission machinery;
3) Precise electromechanical motion module;
4) Precise component and assembly of plastic and metal powder injection.
Applications
12MM High Torque Miniature Gear Head for Electric Power RC Car
|
Audio and visual equipments |
notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder |
|
Household application |
electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk |
|
Office automation equipments |
CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine |
|
Automotive products |
conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine |
|
Toys and models |
radio control model, automatic cruise control, ride-on toy |
|
Medical equipments |
blood pressure meter, breath machine |
|
Industrials |
air freshener, display, flow control valves |
|
Electric power tools |
electric drill, screwdriver |
|
Precision instruments |
monitor, optics instruments |
