Door Frame Walk Through Metal Detector Gate MCD-100

Product Introduction

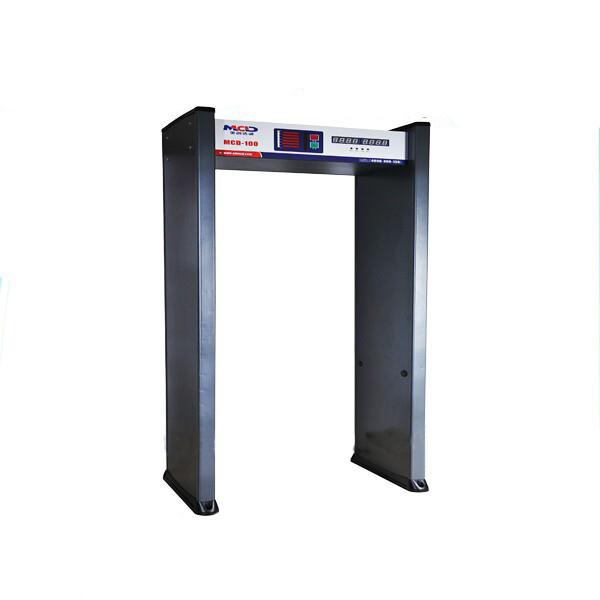

Walkthrough Metal Detector MCD-100

It is economical, practical and cheap; mainly match moderate detection requirement places such as night-clubs or entertainment location.With body height detection design and built-in electromagnetic fields, metal items carried by human can be generated through the alarm device, items like various control tools, weapons, metal products, electronic products and other items containing metal and so on. As a anti-theft examination an effective tool.

Main Parameter

Product Features:

• Six interlaced detection regions of the same high with the body and combining
• Four pairs of infraced emission and the receiver to prevent detection blind spot
• LED array panel on the operation board display the area of metal detected
• Sensitivity of every area can be adjusted independently from 0-99,getting rid of interference of scheduled metal
• Strong anti-interference:digital and analog circuit design to prevent wrong alarm
• Password protection function:just allowing authorized personnel to operate equipment in order to insure security
• Function of several detection doors work at the same location at the same time,the minimum distance between each door must be more than 40 certimeter

Parameter for product:

• Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards.
• Detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
• Basic safety: meeting the requirements of GB4793.
• Personal safety: Satisfied NILECJ-0601.
• Operation Voltage:AC220V 50/60Hz
• Power:35W
• Operation Temperature:-10°C to +50°C
• Machine weight:about 80 kg
• Overall Size: 2200 mm (height)*750 mm (width)* 500 mm (depth)
• Channel Size: 2000 mm (height) *700 mm (width)* 500 mm (depth)
