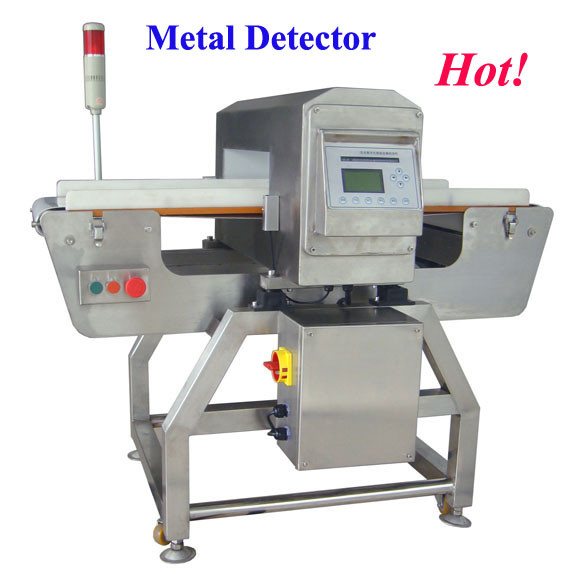

Industrial Metal Detector MD-4012

Large Image : Industrial Metal Detector MD-4012 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ROYEE
Certification:	CE
Model Number:	MD-4012

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1000
Packaging Details:	Plywood Case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

High Light:

Conveyor Metal Detector

Digital Metal Detector

Industrial Metal Detector

Model: MD-4012

【PURPOSE】

◆Online metal detection for food product. A step for food safety(HACCP required)

◆Also can fit for detecting the chemical products, rubber products.

【Specification】

Name	Conveyorised Metal Detection Systems
Model	MD-4012
Specifications	4012
Search coil opening Width	460mm
Search coil opening Height	150mm
Main Material	All made in stainless steel 304
Detection sensitivity(without product)	Fe≥φ 0.7mm Sus304≥φ 1.5mm
Effective Search coil opening Width	400mm
Effective Search coil opening Height	120mm
Conveyor length	1500mm
Belt Width	360mm
Height from the floor to the conveyor belt	700(+100)mm
Transmission capacity	5kg/once
Conveyor Speed	25m/min
Conveying Direction	From left to right
Power Supply	AC220V
Rejector	Pusher

PS:(1) The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected and working condition.

Other modles main techncial data:

Model	4012	4015	4018	4025	5020	5025	5030
Sensitivity Fe(mm)	0.5	0.7	0.8	1.0	0.8	1.0	1.2
Sensitivity SUS(mm)	1.2	1.5	2.0	2.3	2.0	2.3	2.5
Detection Height(mm)	120	150	180	250	200	250	300
Detection Width(mm)	400	400	400	400	500	500	500
Rated Output (W)	200	200	200	200	200	200	200
Belt Speed (m/min)	10~50(Adjustable)
Alarm Method	Alarm to stop transfer or reject setting
