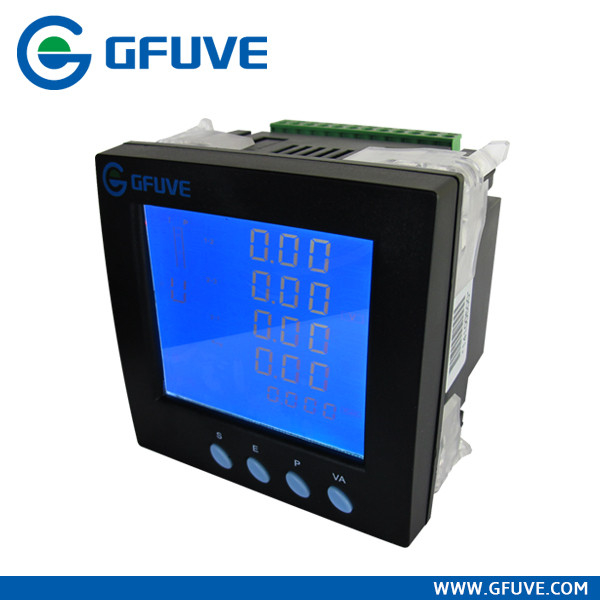

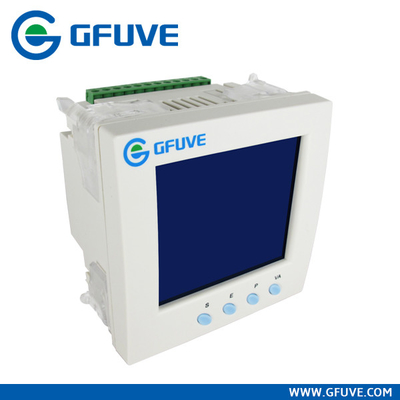

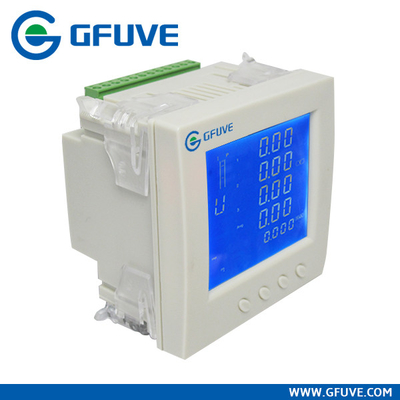

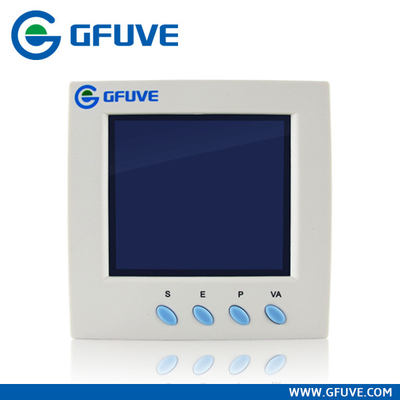

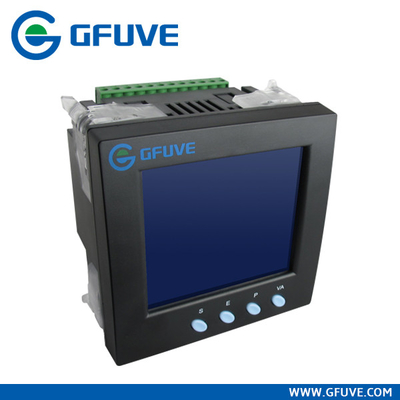

FU2200A Multifunction Power Meter with Data Logger & RJ45

FU2200A Multifunction Power Meter with Data Logger

Introduction

The FU2200A series is a range of economical yet highly functional three-phase multifunction power and energy meters manufactured by GFUVE. These meters provide excellent value for monitoring power and energy management systems. The 2200A series may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol. With a wide range of models to choose from, the 2200A series offers unparalleled value and functionality.

Features

· True-RMS measuring Parameters.

· ANSI and IEC 0.5 Accuracy class.

· Power Quality Analysis.

· 4 Quadrant Energy;

· 4MB onboard memory;

· Data logging

· High-speed RS485, Ethernet Port (optional);

· Measure Individual Harmonics from 2nd to 63th (optional);

· Module Design;

· TOU, 4 Tariffs, 12 Seasons, 14 Schedules

· Class leading Warranty.

· With management software

Applications

· Metering of distribution feeders, transformers, generators, capacitor banks and motors.

· Medium and low voltage systems.

· Commercial, industrial, utility.

· Power quality analysis.

Measurement Parameters

Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 2~63^thharmonics(optional)

Harmonics

Total harmonics content of phase-voltage

Total harmonics content of current

2rd~63th harmonics content of Phase-Voltage (RS485 output)

2rd~63th harmonics content of current (RS485 output)

Maximum Value & Minimum Value

Max. value for voltage/current

Max. value for active power

Max. value for reactive power

Max. value for apparent power

Min. value for voltage/current

Min. value for active power

Min. value for reactive power

Min. value for apparent power

Computation

Forward active power energy

Reverse active power energy

Forward active power energy

Reverse reactive power energy

Measuring Range

0～400V, 0～6A, 45～65Hz, -1~0~1

Measuring Accuracy

Voltage : 0.5%RD±0.05%FS

Current : 0.5%RD±0.05%FS

Active Power : 0.5%RD±0.05%FS

Reactive Power: 1.5%RD +0.05%FS

Apparent power: 0.5%RD +0.1%FS

Power Factor: 0.5%RD

Frequency: 0.05%RD

Active Energy: 0.5%

Maximum Demand

Ia, Ib, Ic, ΣP_total, ΣQ_total, ΣS_total, 15 minutes

Display

Wide screen angle, Light blue back-lit LCD Display, 5 Displays figures. 4 operation keys.

Memory

Standard 2M memory, extended to 4M;

It can be set arbitrarily store data from 1minute to 60minutes intervals, Standard factory 15minutes in one group data recorder.

It can recorder not less than 4 channel (voltage, current, power, power factor and so on) and four (Forward active power energy, Reverse active power energy, Forward active power energy, Reverse reactive power energy),recording 1 times every 15 minutes, at least 1 years of data, through the communication port to read; you can select data items what you need to be stored through software;

Communication

RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol.

Energy Pulse

provides active & reactive energy pulse output. Pulse parameters can be choose, range:0.1~10000kWh/kvarh. Dry contact output (1A*100V).

Data Collection (Expansion)

Each FM-K2 module can be collected 2-ways of contacts and counting.

Control (Expansion module)

Each FM-K2 provides 2 relay outputs, which can be controlled by communication or the measured parameters.

Analog Output (Expansion module)

Each FM-A20 module provides 2 ways of DC 4~20mA output, It can be set the function-relations about parameters.

Connection Mode

3P4W, 3P4W BAL, 3P3W, 3P3W BAL;

Programmable

Measuring System: 3P4W/3P3W etc.

Transformation Ratio : PT 1~10000; CT 1~10000 .

Communication

RS485, Baud: 1200~57600, Standard 38400; Ethernet Port (optional)

Dimension

Mounting Panel：96 X 96mm

Mounting

Panel Mounting

Trepanning: 92 X 92mm

Power Supply (AC/DC)

AC85~400V / DC85~330V,

Power Consumption: <4VA

Working condition

Temperature: -25 ~ 55 °C

Humidity: 20% ~ 95%RH, Without condensation

Warranty

Three years warranty
