HP-10 digital torque meter/tester

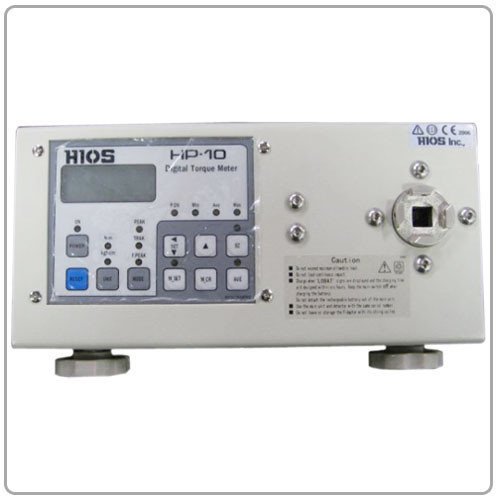

Large Image : HP-10 digital torque meter/tester Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HOIS
Model Number:	HP-10

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	carton
Delivery Time:	within 3 days after the receipt of payment
Payment Terms:	T/T,Western union,Escrow
Supply Ability:	9999pcs/month

Contact Now

Detailed Product Description

digital torque meter,HIOS digital torque meter,HIOS Torque Tester,digital torque tester,Torque detector ,HIOS torque measuring instrument

Features

With a Hios HP10 digital torque meter/tester you can calibrate torque settings on screwdrivers, check torque wrenches or make torque measurements of various kinds of rotation tools. Easy to use, accurate and low in cost, Hios Hp-10 and Hp-100 digital torque meters are used by manufacturers of electronic goods, cameras, watches and other kinds of precision instruments, as well as by makers of automobiles and aircraft.

Specifications

HOIS HP-10 Digital Torque Meter

1.Display of the torque direction.

2.Deposited data printing.

3.Nickel-Hydrogen battery power

Performance

1. Metric Alarm.

2. Measuring curve printing.

3. Kgf.cm / N.m transition.

4. Peak Keeping function.

5. Automatic charging control.

Specification

mode		HP-10	HP-50	HP-100
peak range	N.m	0.015-1.000	0.15-5.00	0.15-.10.00
	N.cm	1.5-100.0	15-500	15-1000
	Lbf.in	0.15-9.00	1.5-45.0	1.5-90.0
	(Kgf.cm)	0.15-10.00	1.5-50.0	1.5-100.0
Accuracy	In the range of ± 0.5% (full scale)
Power	5 1.2V 1000mA Ni-MH battery
Working hours after fully charged (Continuous use)	About 16 hours
Battery Life	Around 500 times rechargeable
Size	Si See Dimension Chart
Weight	1.8Kg
AC Adapter	In the 100-240V AC (50 or 60Hz) to work Output 7.5-8.5V DC (0.5A))
