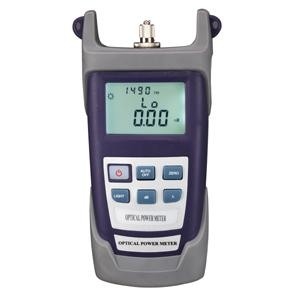

SH-M100D Optical Power Meter

Large Image : SH-M100D Optical Power Meter Get Best Price

Product Details:

Certification:	ISO9001 and ISO14001, UCS
Model Number:	SH-M100D

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD70-80
Packaging Details:	standard package
Delivery Time:	3-5 days
Payment Terms:	T/T Western Union MoneyGram
Supply Ability:	2000pieces/month

Contact Now

Detailed Product Description

Highlight:

Optical Power Meter

fiber tester

fiber optic equipment

SH-M100D Optical Power Meter

Descriptions

SH-M100D Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the SH-M100D has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with SH-S125 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.

Features

. Wave ID Auto wavelength identification & switching
. Frequency ID ---Auto frequency identification
. 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
. Intelligent backlight
. 1000 records storage or download via USB cable
. USB communication port for saved testing records download
. Reference power level can be set up and stored
. User self-calibrating function
. Auto-off function
. Up to 240hrs battery life

Specifications

Model	SH-M100C	SH-M100D
Calibration Wavelength(nm)	800~1700
Detector type	InGaAs
Measurement Range(dBm)	-70+10	-50+26
Uncertainty (dB)	+0.2(5%)
linearity (dB)	0.01
Display resolution(dB)	0.03
Frequency ID Hz	270 330 1K 2K
Wave ID nm	850,980,1300,1310,1490,1550,1625
Date Storage Capacity	1000
Communication Port	USB
Connector	FC/SC/ST Interchangeable
Alkaline battery	3AAA 1.5V orLi battery (9V)
Power Adapter(V)	8.4
Battery Operating time (h)	240 without backlight
Operation Temperature(^oC)	-10(^oC) +60
Storage Temperature(^oC)	-25(^oC)+70
Dimension(mm)	1728233
Weight(g)	310

Standard Packages

MODEL	INCLUDES
All SH-M100 Models	SH-M100 Optical Power Meter, 3pcs 1.5V Batteries, Power Adapter, User Manual, USB cable, CD, Cotton Stick and Soft Carrying Case.
