Insertion / Return Loss Tester , Fiber Optic Test Equipment Power Meter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | optical power meter,fiber optic power meter |
||
|---|---|---|---|

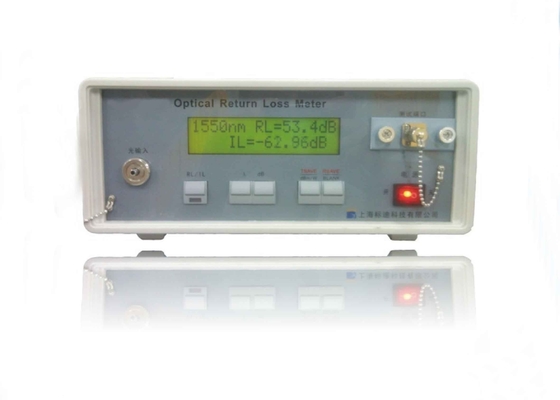

SD622 Insertion Loss and Return Loss Tester , Optic Power Meter
Quick Detail:
Auto wavelength switch
Auto zero
Average function
Calibration parameters storage
Dual-channel colorful LED screen
Special light source connector, easy to clean
Description:
SD622 Insertion Loss and Return Loss Tester is a precision test instrument, which not only features the super-accurate detection circuit of the weak signal, but also with the signal analysis and processing and software processing technologies. Widely used in optical fiber communication system research, development and production.
Applications:
Telecom Projects
Optical Fiber CATV
Generic cabling system
Production and research of optical components
Specifications :
|
Model |
SD-622 |
|
|
Return Loss |
Input Connector |
FC/PC, 9/125μm |
|
Test Connector |
FC/APC,9/125μm |
|
|
Calibration Wavelength(nm) |
1310/1550 |
|
|
Output Power(dBm) |
≥1 |
|
|
MeasurementRange(dB) |
-75~+3 |
|
|
Measurement Accuracy(dB) |
± 0.25 |
|
|
Resolution(dB) |
0.01 |
|
|
Insertion Loss |
WavelengthRange(nm) |
800-1700nm |
|
Connector (Power Meter) |
Interchangeable FC/SC/ST/2.5mm universal /1.25mm universal |
|
|
Detector |
InGaAs |
|
|
MeasurementRange(dBm) |
-75~+3 |
|
|
Resolution |
Non-linear 0.001dB:Linear:0.001nw/mW/UVV |
|
|
Measurement Accuracy |
±5% |
|
|
Linearity(dB) |
±0.02 |
|
|
General Specification |
Power Supply |
AC 90-260V.50-60Hz |
|
Operation Temperature(°C) |
-5~+55 |
|
|
Humidity |
<95%RH |
|
|
Weight(kg) |
3.5 |
|
|
Dimensions(mm) |
256(L)x250(W)x100(H) |
|
Competitive advantages:
Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.
All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.
We wish to create better future of optical communication industry jointly with both new and existing customers.
