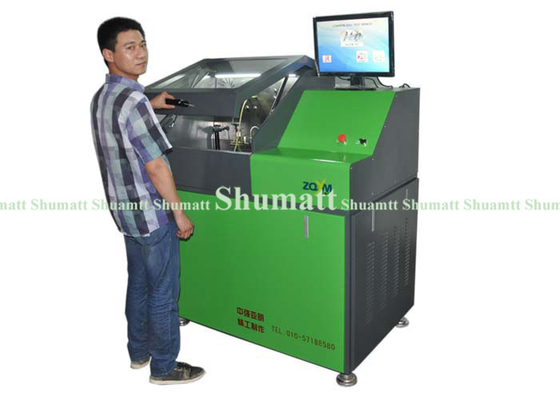

Common Rail Injector Tester Equipment Automatic Automotive Testing Stand 380v / 220v
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | CRI Test Bench 418A | Weight: | 450KG |
|---|---|---|---|
| Usage: | Auto Testing Machine | Package: | Wooden Box Packing |
| Applicable Models: | For All Injectors Testing | Type: | Common Rail Test Bench |
| Rail Pressure: | 0-2200BAR | Voltage: | 380v / 220v |
| High Light: | bosch common rail test bench,common rail testing equipment |
||
Injector Tester Equipment Common Rail Injector Test Bench Auto Test Function
Features of Common Rail Injector And Pump Test Bench 418A:
1: It is designed to be able to test all types of CR Injectors, including Bosch, Delphi, Denso, Siemens injector test.
2: 4 Degree Euro III standard oil filter: accuracy reaches 2 μm
User friendly DIY, reset and adjust data plans data make it applicators for all kinds of injector.
3: Steps protection of wrong use making test life easy to understand and help to save a lot.
4: Complete Automatic Testing, results are show with easy to understand test report.
5: Precise test data report and good quality base on main parts imported from original Bosch,
Cobb, and Italy brand parts.
6: Latest version control software and drivers, free update lifetime
7: High stability, product will be go with 1000 hours pressure test before ship. We already have more than 5000 users in Chinese market.
8: ZQYM has training shop and 24 hours after sales service support. We supply Repair manuals for repairing various common rail injectors.
Technical Specifications of Test Bench 418A
1: Fuel Injector Test Bench 418A Key components
|
High-pressure pump |
Original BOSCH CP1H pump |
|
Common rail tube |
Original BOSCH |
|
Common rail pressure Sensor |
Original Bosch Sensor |
|
Fuel metering valve |
Original BOSCH CP1H pump |
|
Common Rail Pressure System |
Max 2200bar |
|
Flow sensor |
Original Germany KOBO |
|
Flow sensor Flow |
700 ML/mins |
|
Flow sensor accuracy |
0.5 ‰ |
|
Passage switching solenoid valve |
2 pcs,Made in Italy |
|
DRV valve |
BOSCH 0281002507 |
|
Rail Fuel pressure set-up time |
5 Sec |
|
Quick start |
Yes |
2: System software of Injector Pump Test Bench 418A
|
BOSCH |
Common rail injectors and common rail pump |
|
DELPHI |
Common rail injectors and common rail pump |
|
DENSO |
Common rail injectors and common rail pump |
|
SIEMENS |
Common rail injectors and common rail pump |
|
Injector Quick test |
5 mins |
|
Injector Test Projects |
5 |
|
Injector Sealing test |
Yes |
|
Injector full load test |
Yes |
|
Injector Back flow |
Yes |
|
Injector idle test |
Yes |
|
Preinjection test |
Yes |
|
Preinjection test Injector Data |
Yes |
|
Piezoelectric crystals injector |
NO |
|
Injector Quick test |
5 mins |
|
DIY data add |
Support |
|
Test report |
Display |
|
Test report save |
Yes |
|
Test report Customization |
Yes |
|
Adverse Report |
Display |
|
trouble code |
Support |
|
Maintenance Remind |
Support |
|
Display |

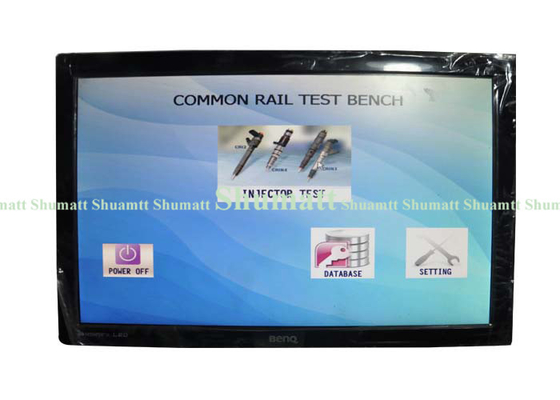

19 inch LED display shows the inspection process, operation, test reports, bug reports |
3: CRS Nozzle Testing Machine 418A Host control section
|
Chipset |
Intel ARM X9 |
|
USB port |
4pcs |
|
VGA port |
1pcs |
|
OS |
Winds CE |
|
Design standards |
Industrial control standards |
4: System filtration of Common Rail Test Bench 418A
|
Filters |
4pcs |
|
primary standard Filter |
2, Euro III standard |
|
secondary standard Filter |
2, Euro III standard |
|
Cooling method |
2 synchronous cooling |
|
Fuel Cooling method |
Electric cooling fan blades |
|
Radiator numbers |
2 Sets |
|
Fuel tank |
Combined automatically classified tank |
|
Main tank capacity |
30L |
|
Auxiliary fuel tank |
10L |
5: Common Rail Injector Test Bench 418A Ancillary apparatus
|
Host voltage |
220V |
|
Motor power: |
5.5KW |
|
inverter |
7.5KW |
|
Display |
19 inch LED screen |
|
mist eliminator |
Yes |
|
Access Switch for test chamber |
Yes |
6: Update and warranty of Common Rail Injector Diesel Pump 418A
|
Update method |
U disk update |
|
Warranty |
3 years |
|
Data add |
DIY manually add and U disk update |
|
Upgrade deadline |
Lifetime Free |

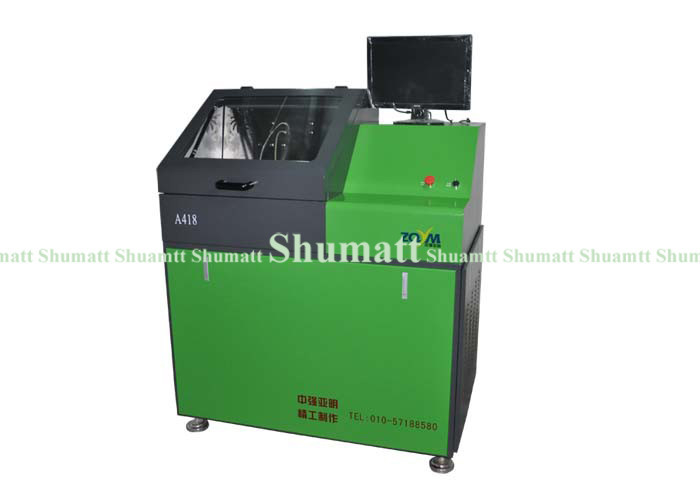

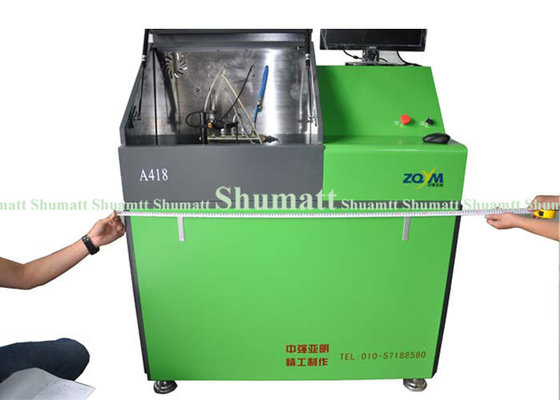

The Inner Picture Display:
